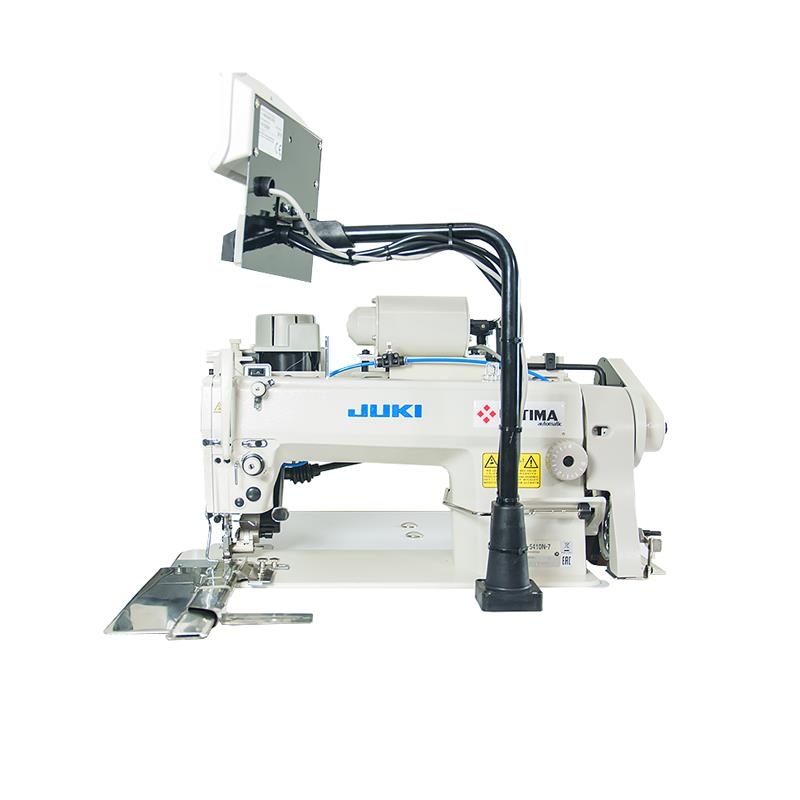

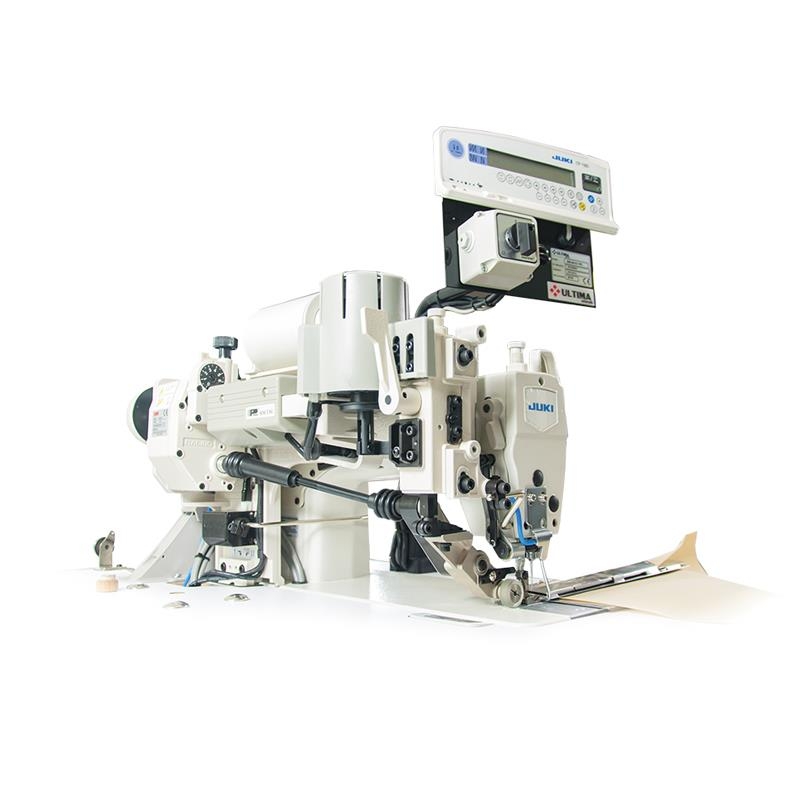

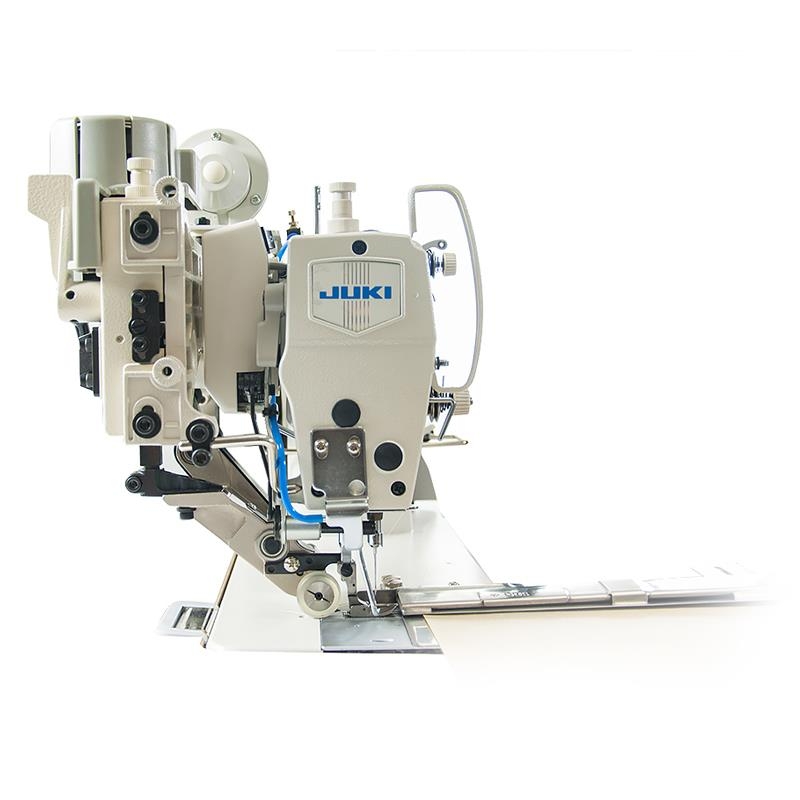

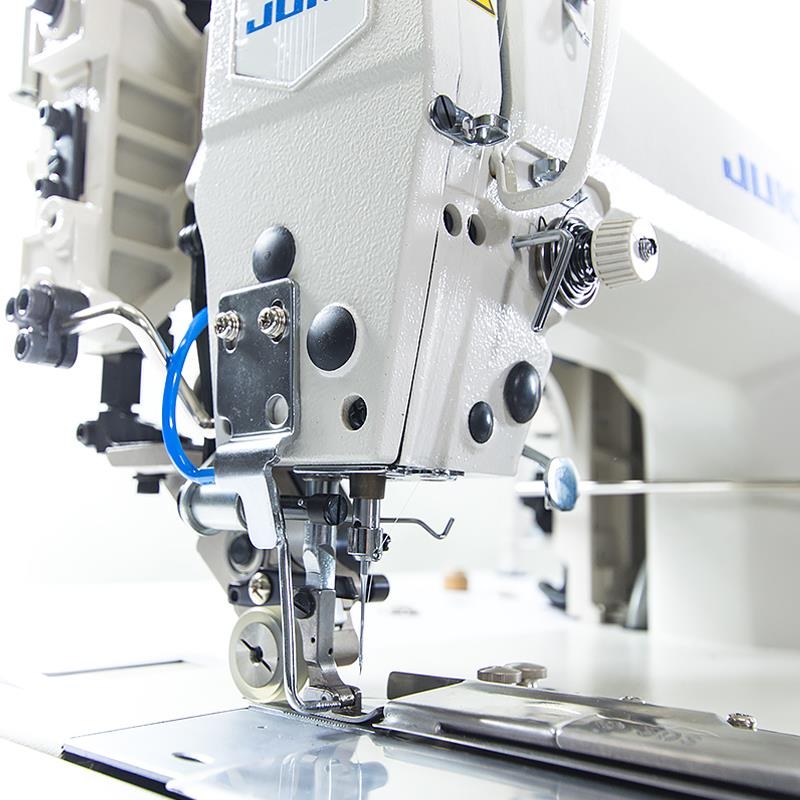

ULTIMA SM-5410-7 - window blinds hemming sewing unit with RACING puller

This specialized device is designed for rolling up window blinds. The machine is equipped with a needle feed, which perfectly copes with the sewing of difficult materials. Sewing window blinds is even more efficient thanks to the RACING puller. It supports needle feed, thanks to which the material is moved easily and with perfect precision. The device has automatic functions that are programmed using the electronic control panel. Rolling up window blinds runs very smoothly thanks to a special hemming device facilitating everyday work. The machine head was manufactured by JUKI, which guarantees its durability and reliability. During sewing window blinds, the machine operator stands on the side of the machine, and not as in the case of traditional lockstitch machines - at the front.

Technical parameters of the ULTIMA SM-5410-7 window blinds hemming sewing unit:

• Stitch: lockstitch
• Needle feed
• RACING puller
• Maximum sewing speed: 5000 stitches per minute
• Maximum stitch length: 4mm
• Lifting presser foot height: 13mm
• Lubrication: central
• Needle system: DBx1 (# 14) 134 (Nm90)
• Automatic functions: thread trimming, backtacking, presser foot lifting and needle positioning
• Control panel

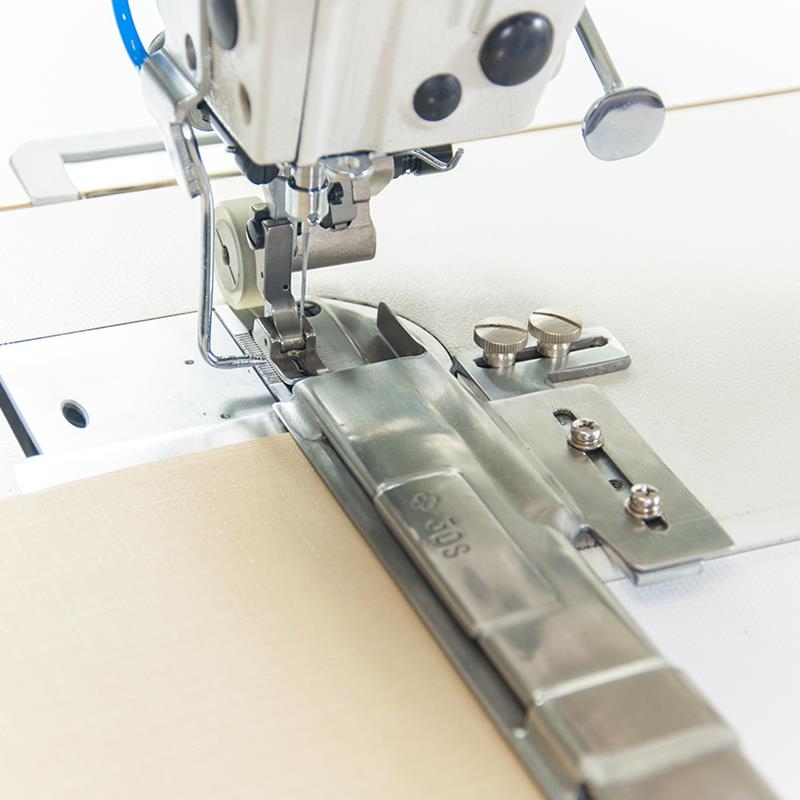

• Hemming device
