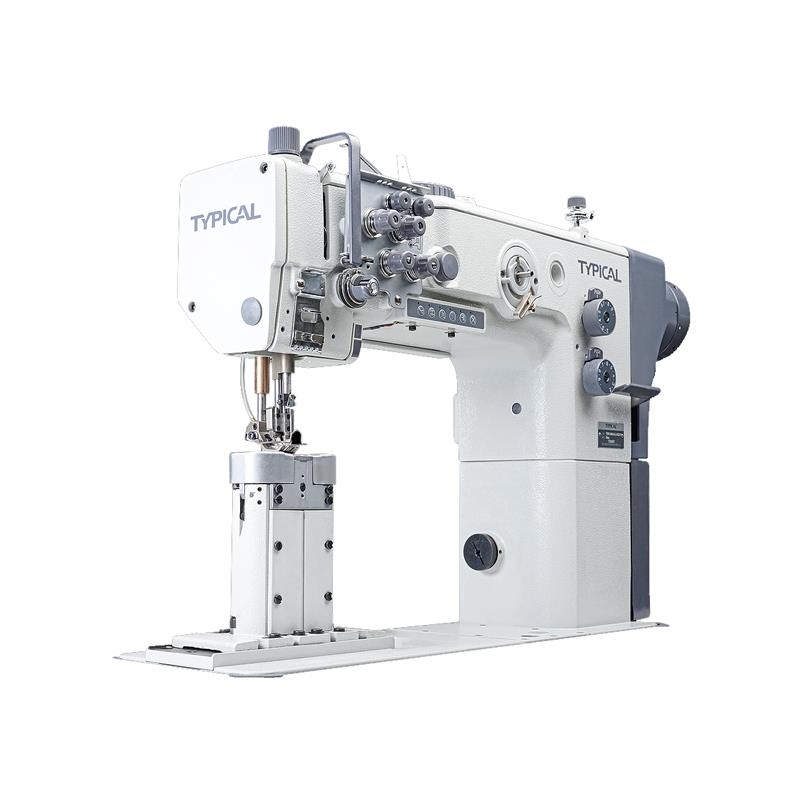

TYPICAL TW5-898-L14-D2T5 one needle postbed lockstitch machine with compound feed

This model is an industrial post-bed lockstitch, which is designed for sewing medium and heavy materials. The device is ideally suited primarily in technical sewing, i.e. in the production of furniture and car upholstery. The postbed construction of the lockstitch allows sewing in hard-to-reach places, so TYPICAL TW5-898-L14-D2T5 can also be used when sewing suitcases or leather bags. Compound feed, enlarged hook and increased clearance under the arm (355x300mm) facilitate heavy, technical sewing and are ideal for working with materials with a large area. This postbed lockstitch has a direct drive, which makes the machine work much more quietly. Among the advantages of the device is also worth mentioning a convenient automatic lubrication system and automatic functions (lifting foot, bartacking, thread trimming). Their parameters are programmed using a handy control panel. The function buttons is integrated with the head of the lockstitch, which also facilitates and speeds up everyday work. To further improve the work, manufacturers of the TYPICAL TW5-898-L14-D2T5 model equipped it with two knobs of stitch length adjustment, a button for quick change of the stitch length, an electronic handwheel and a switch for quick change of foot lift.

Parameters of one needle postbed lockstitch machine TYPICAL TW5-898-L14-D2T5:

• purpose: medium and heavy sewing
• direct-drive
• compound feed
• max. stitch length: 9mm
• max. sewing speed: 2500spm
• clearance under sewing foot: 9/16mm
• switchable second top feed
• automatic functions
• presser foot lifting
• bartacking
• thread trimmer

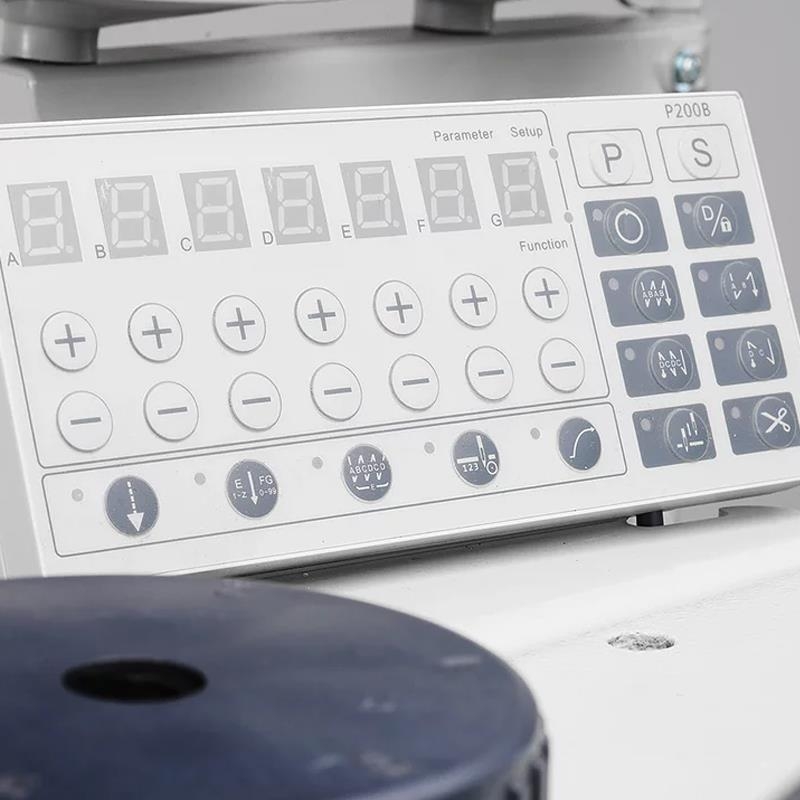

• control panel
• bigger hook
• electronic handwheel
• automatic lubrication system
• clearance under the arm: 355x300mm

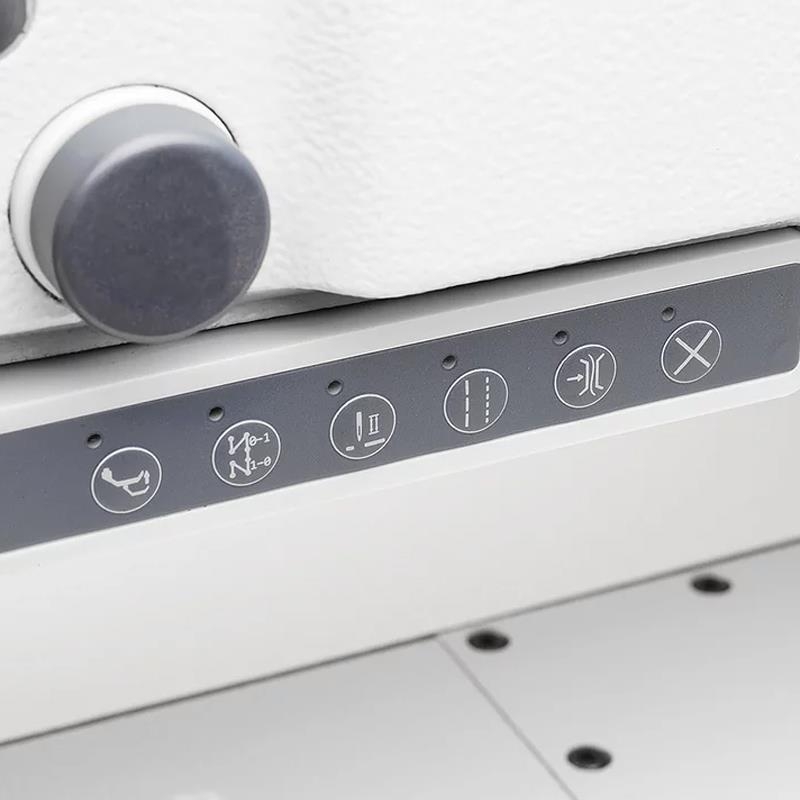

• additional function buttons
• two knobs for stitch length regulation
• button for quick change of the stitch length
• needle system: DPx17,120-160 nm

The machine is also available in a two needle version (TYPICAL TW5-898-2-L14-D2T5).
