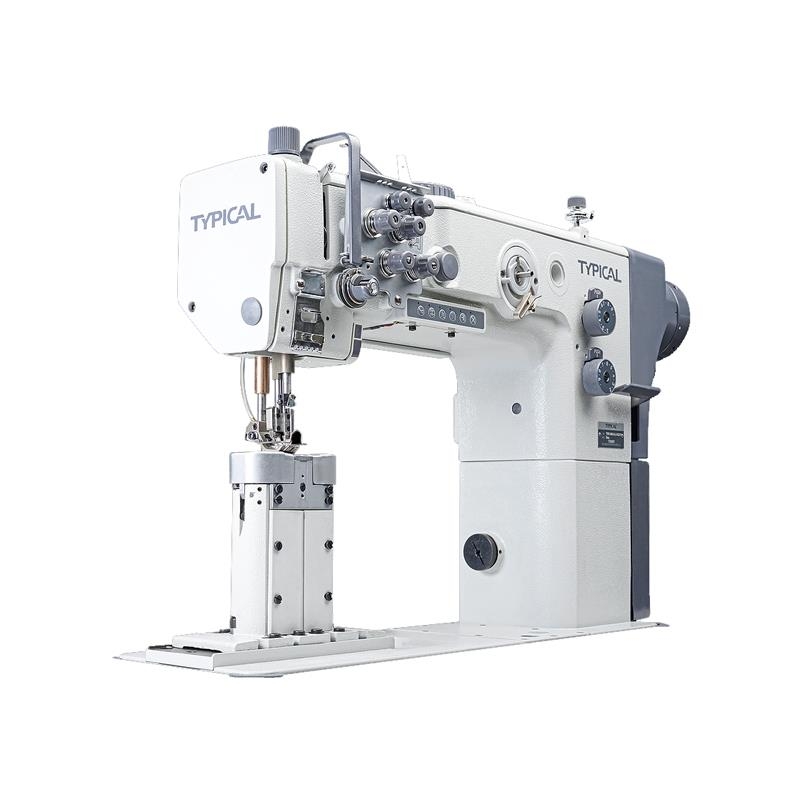

TYPICAL TW5-898-2-L14-D2T5 two needle postbed lockstitch machine with compound feed

This postbed lockstitch machine is a two-needle medium and heavy sewing machine. TYPICAL TW5-898-2-L14-D2T5 ideally suited to the production of furniture and car upholstery as well as sewing bags or suitcases. Thanks to the postbed construction of the device, the machine operator can easily sew in hard-to-reach places. Due to the increased clearance under the machine's arm, sewing materials with an enlarged surface also runs much more efficiently. This lockstitch has automatic functions (presser foot lifting, bartacking and thread trimming). To set their parameters, use the handy control panel. The device is also characterized by an automatic lubrication system and direct drive. It is also worth mentioning the additional functions that improve everyday work such as the electronic handwheel, switchable second top feed or the button for quick change of the stitch length.

Parameters of two needle postbed lockstitch machine TYPICAL TW5-898-2-L14-D2T5:

• purpose: medium and heavy sewing
• direct-drive
• compound feed
• max. stitch length: 9mm
• max. sewing speed: 2500spm
• clearance under sewing foot: 9/16mm
• switchable second top feed
• automatic functions
• presser foot lifting
• bartacking
• thread trimmer

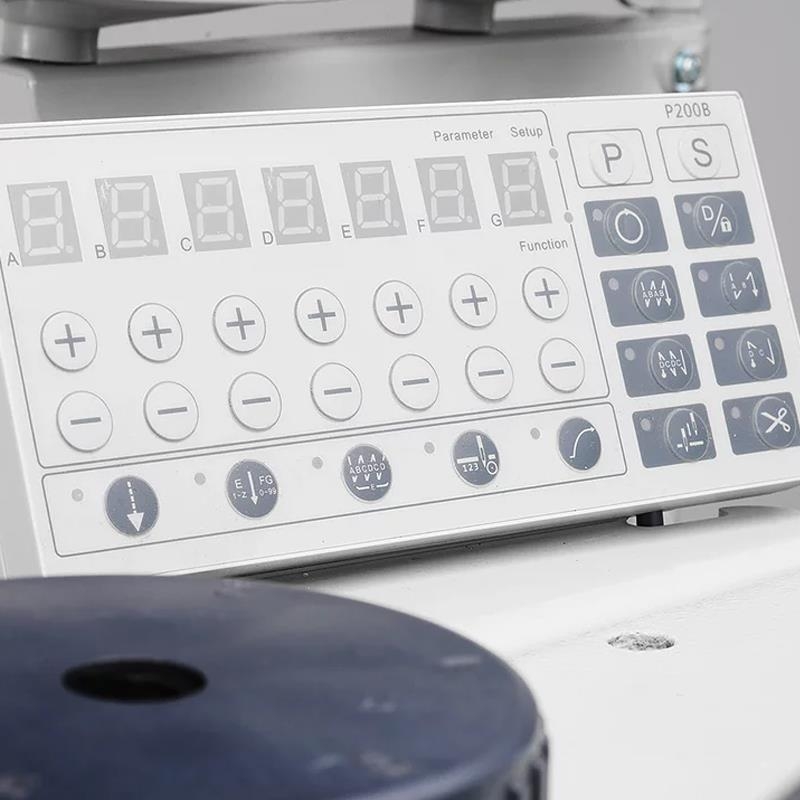

• control panel
• bigger hook
• electronic handwheel
• automatic lubrication system
• clearance under the arm: 355x300mm

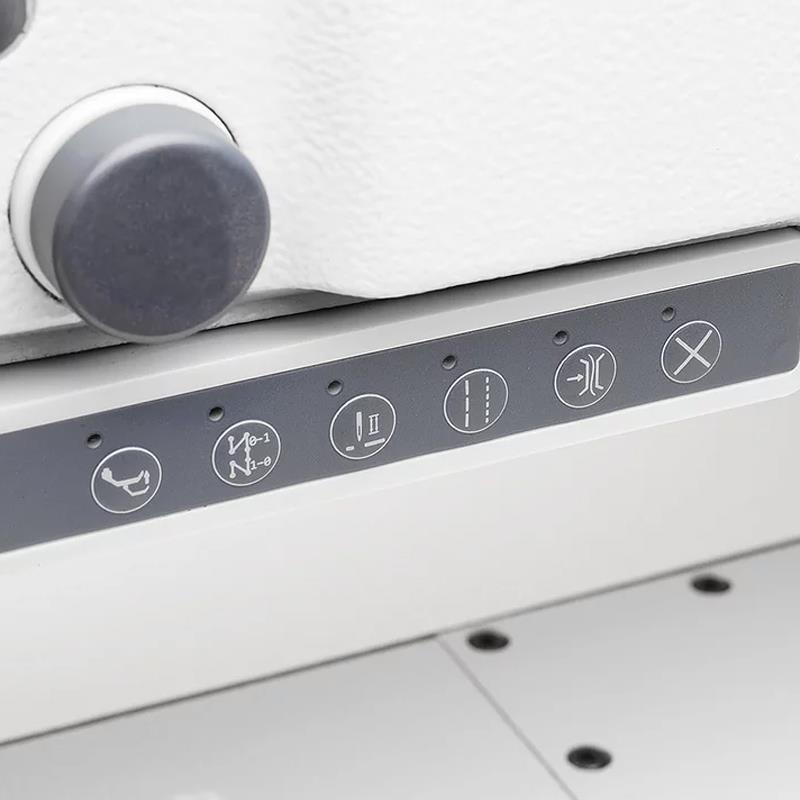

• additional function buttons
• two knobs for stitch length regulation
• button for quick change of the stitch length
• needle system: DPx17,120-160 nm

The machine is also available in a single-needle version (TYPICAL TW5-898-L14-D2T5).
