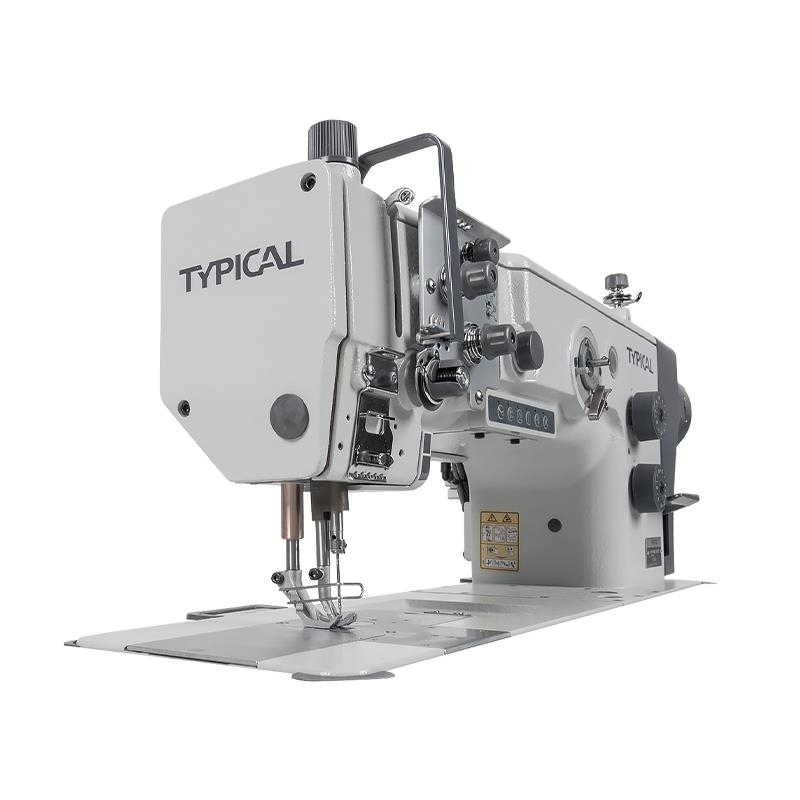

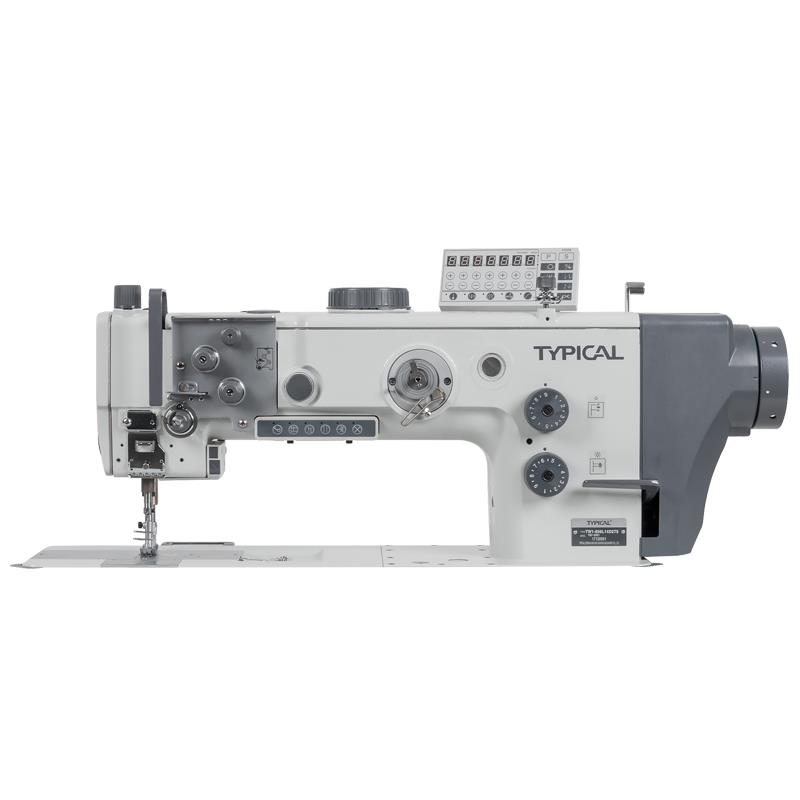

TYPICAL TW1-898-L14-D2T5 automatic lockstitch with compound feed

One needle, industrial lockstitch to medium and heavy sewing. Machine has compound feed. You can lift foot on 16mm altitude. Enlarged area under the arm (355mm) improves sewing. Lockstitch has direct-drive, built with energy saving motor in machine head. This solution reduces vibration and makes that machine works quieter. Automatic functions improves every day work and they are programmed by electronic control panel. In addition to this lockstitch has led light, nipper (which keep threads after cutting), additional function buttons and enclosed, automatic lubrication system.

Features of TYPICAL TW1-898-L14-D2T5:

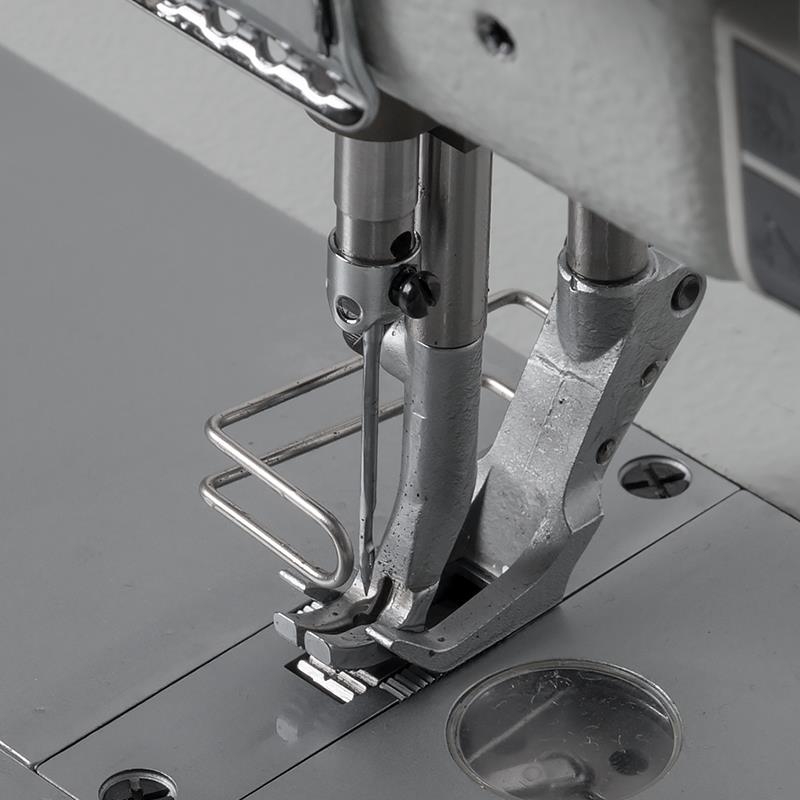

• compound feed
• energy saving motor and direct-drive built in machine head
• max. stitch length: 9mm
• max. sewing speed: 3500
• foot lifting: 16mm
• automatic functions:
  • needle positioning
  • foot lifting
  • backtacking
  • thread trimmer

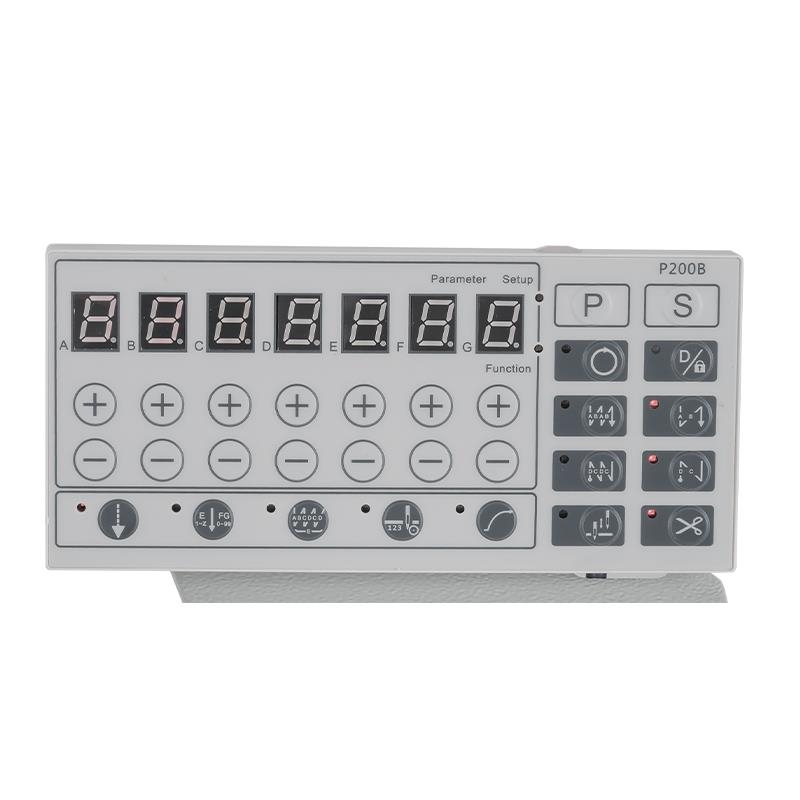

• electronic control panel
• additional function buttons:
  • walking foot regulation
  • back tack turning off
  • needle positioning
  • change stitch length

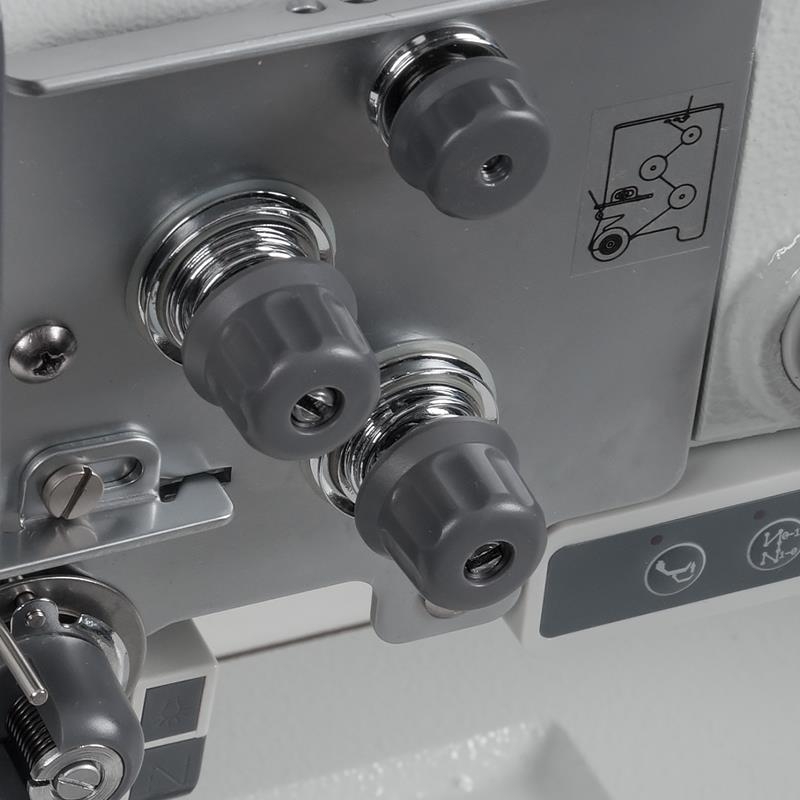

  • addtional thread tensioner
  • machine lock

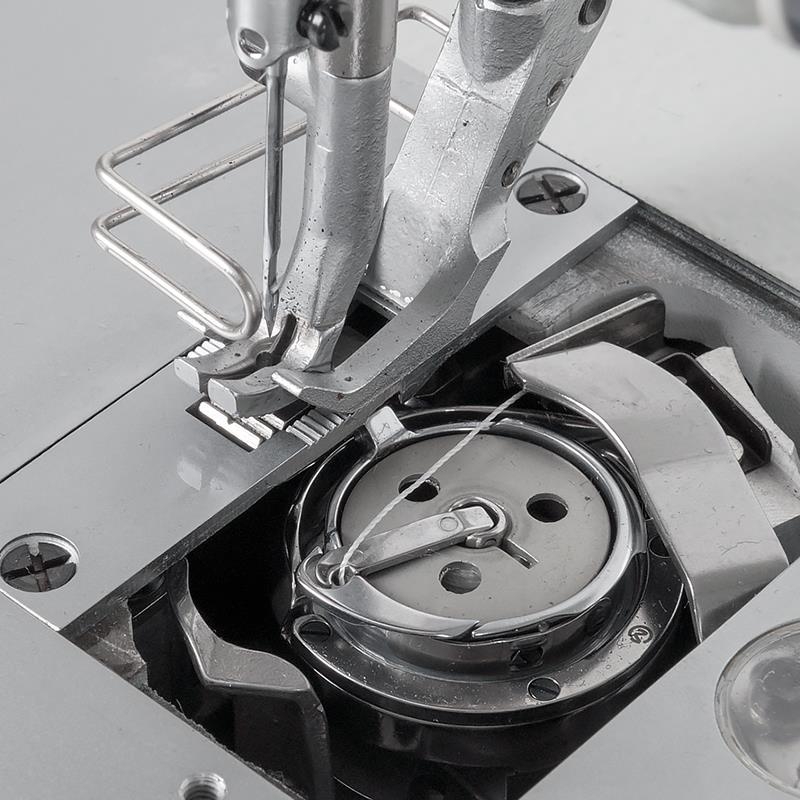

• bigger hook
• needle bar stroke: 34mm
• automatic, enclosed lubrication system
• area under the arm:

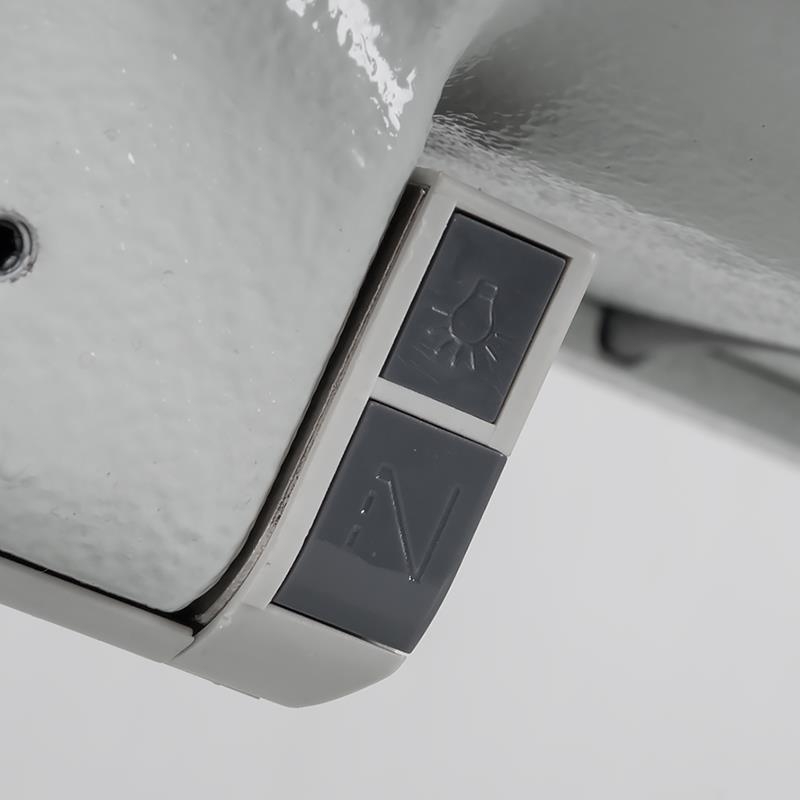

• led light
• knob to set needle positioning precise

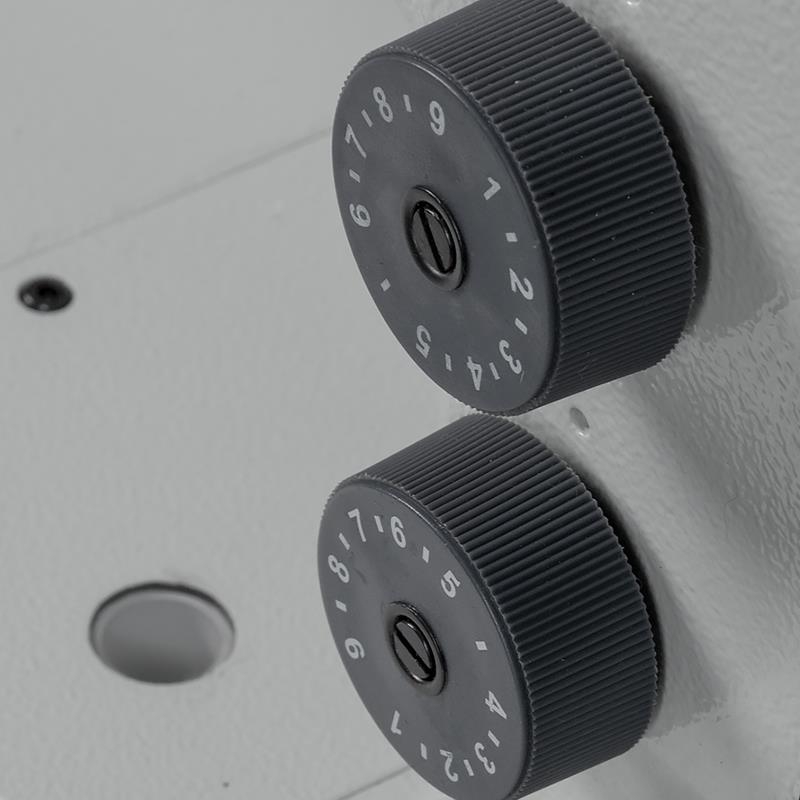

• to knobs to stitch length regulation
