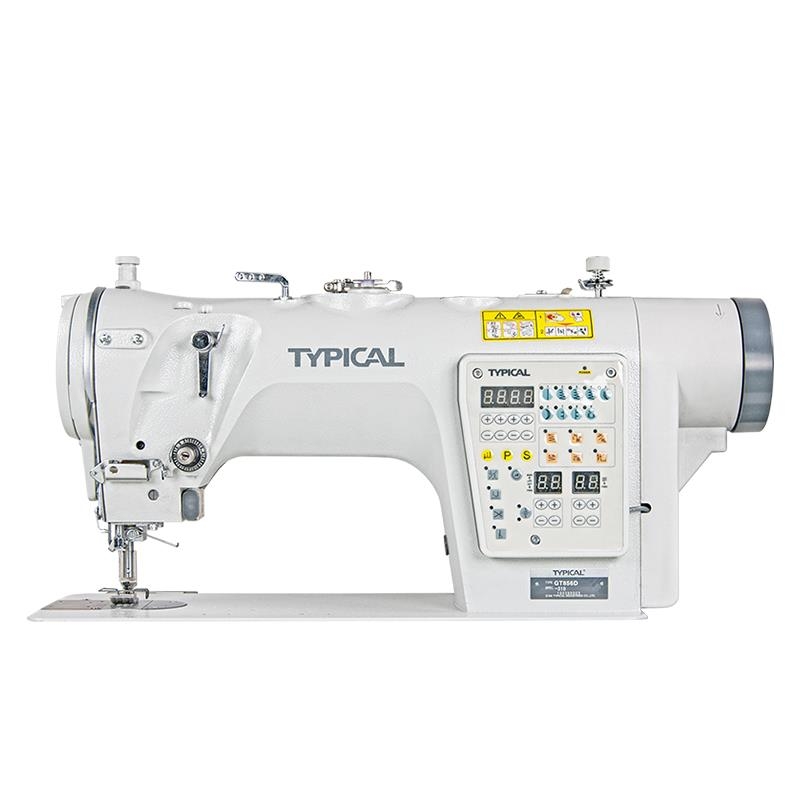

TYPICAL GT856D-318 zigzag electronically controlled motorized Direct-Drive

Zigzag electronically controlled motorized Direct-Drive, bottom feed. The machine is designed for medium and light stitching machine

Characteristics:
- Direct-drive Direct-drive housed in the machine
- Electronically controlled stitch length and width by means of stepper motors
- Forward stitch and back stitch Separately programmable

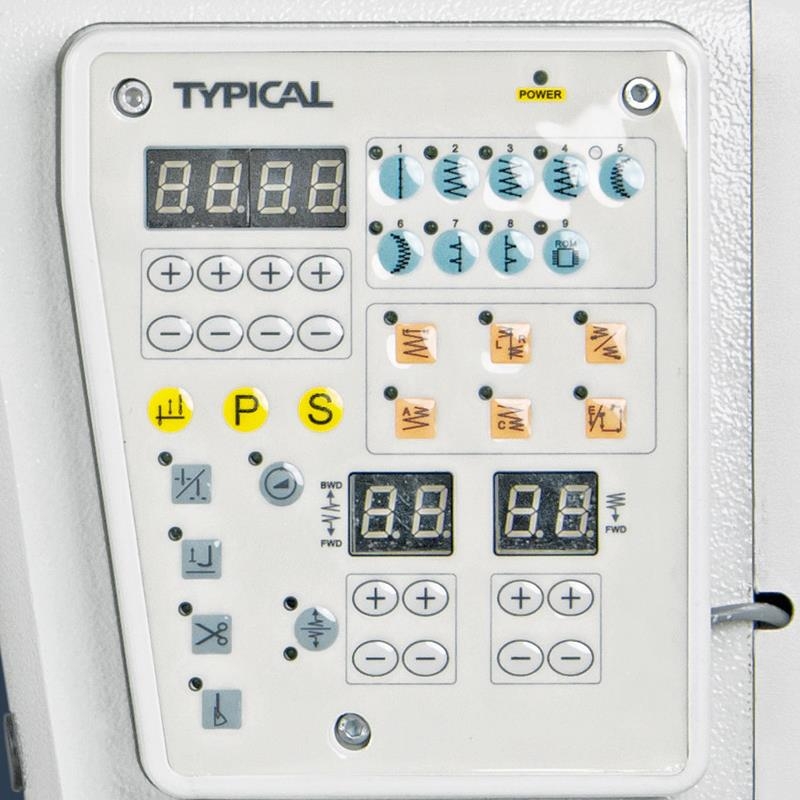

- Intuitive control panel with integrated head machine
- 8 quickly available types stitch, elected with simply one click
- 210 pre-programmed stitch patterns
- Available software to design their own patterns stitch
- Adjustable needle thread tension, provides superior stitch quality, even at dramatically different speeds Sewing
- Fully automatic lubrication system

Specifications:
- The type of stitch 301
- Maximum stitch length: 5 mm
- Maximum stitch width: 8 mm
- Maximum speed: 5,000 stitches / min
- Raise the needle bar: 33.3 mm
- Raise the presser foot: 15 mm
- The needles: SY1965 # 70-90
- The dimensions and gross weight of the head: 66 x 30 x 60 cm, 66 kg


We assembled, ready to work kit comprising:
- Head machine
- The disc table
- Metal base
- Engine
- Drawer
- Additional Accessories
- User's Guide
