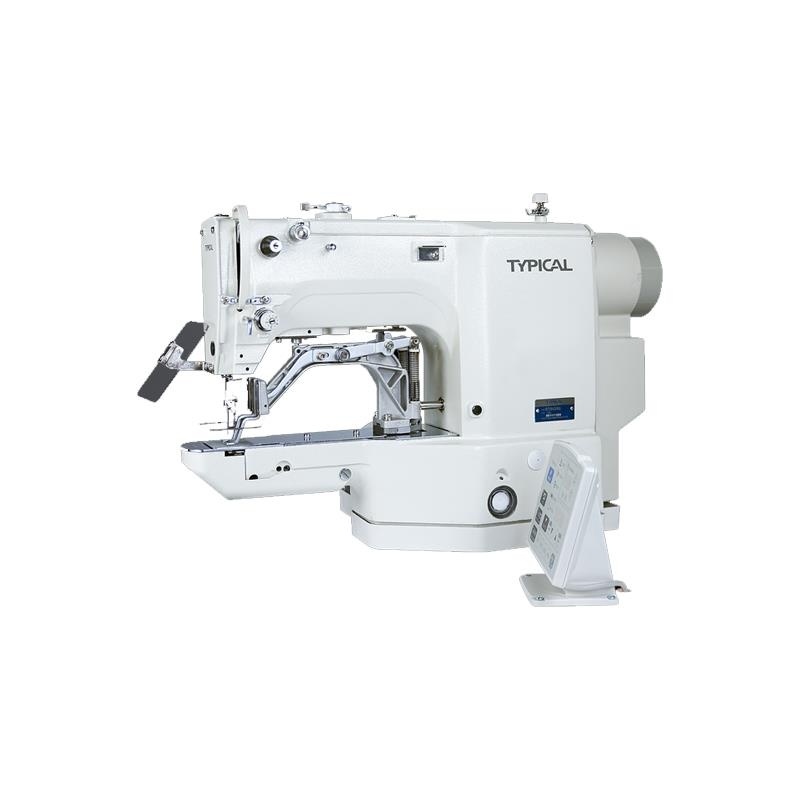

Typical GT6430-D-02 electronic bar tacking machine with direct drive

Electronic bar tacking machine with direct drive

Technical data:
- Drive the X-axis and Y carried out using stepper motors
- Integrated servo motor 550W
- Work without the need for a compressor
- Free of oil needle ensures no stains on the material
- Thread is cut at a distance of approx. 2-2.5 mm of the end stitch
- Catcher CB (central spool, the standard size)
- The data stored on the SD card
- The ability to store up to 50 customized programs
- Memory 210000 stitches
- All programs can be increased twice
- Stitch length 0.5 - 12.7 mm
- Lifting the presser foot height 17 mm
- Maximum sewing speed of 3,200 stitches per minute
- 89 sewing programs
- Sewing area 40 x 30 mm

We assembled, ready to work kit comprising:
- Head machine
- The disc table
- Metal base
- Engine
- drawer
- Additional Accessories
- User's Guide
