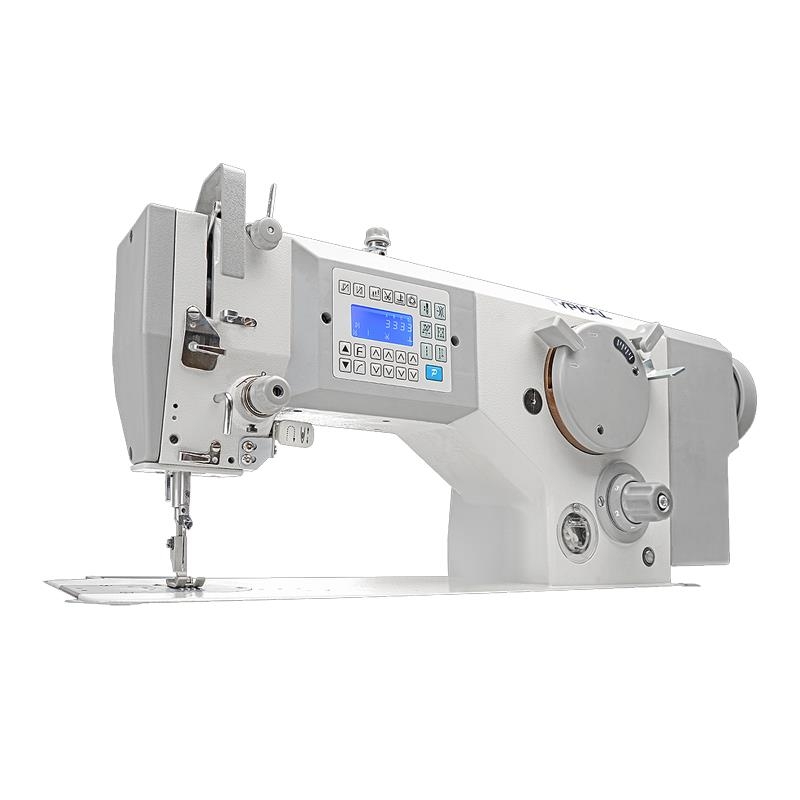

TYPICAL GT1118 CC-HD3 modern ZIG-ZAG lockstitch - 14 stitch patterns

This modern ZIG-ZAG lockstitch is designed for medium and heavy sewing. There is up to 14 di¬fferent zig zag stitch patterns through cam change. As a result, TYPICAL GT1118 can be used in sewing rooms with different sewing profiles. The machine has an intuitive electronic control panel built into the machine head that allows you to quickly set the parameters you need at the moment. Automatic functions (thread trimming, backtacking, presser foot lifting and the needle positioning) improve the daily work with the lockstitch, as do the two function buttons located in the area of the needle bar. The buttons are used to needle positioning and to start an additional bartack during sewing. Their parameters are set using the control panel. The machine has an enlarged hook, which allows the use of a larger bobbin, and thus less frequent thread exchange.

Parameters of the ZIG-ZAG lockstitch TYPICAL GT1118 CC-HD3:

• Purpose: medium and heavy sewing
• Direct drive
• Maximum sewing speed: 2000 stitches per minute
• Maximum stitch length: 5mm
• Maximum stitch width: 10mm

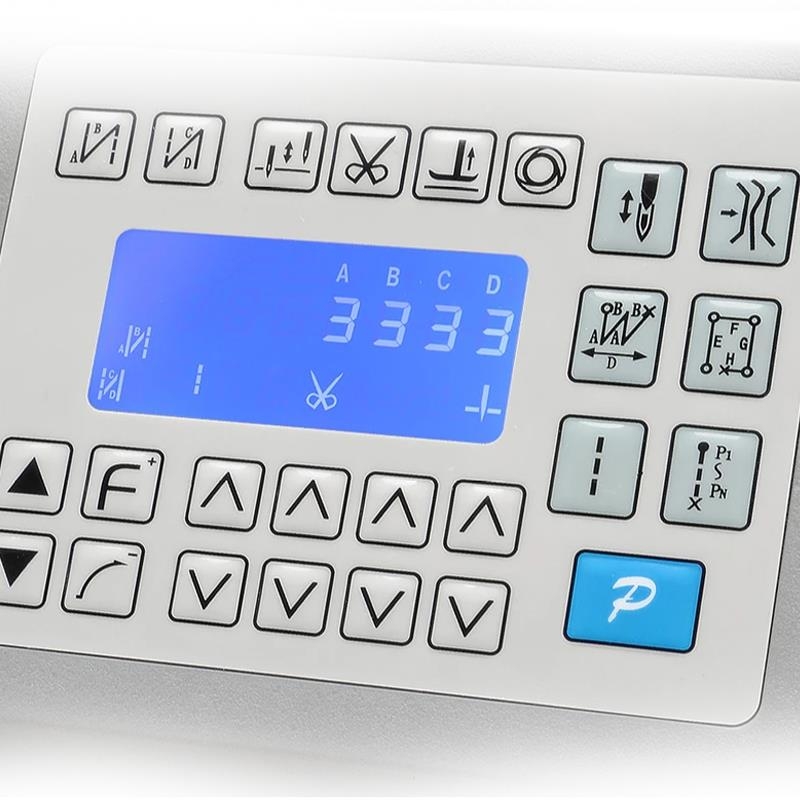

• Built-in control panel
• Automatic functions:
• Thread trimming
• Presser foot lift
• Backtacking
• Needle positioning
• Height of the pressef foot lift: 7/10mm
• Needle bar stroke: 34mm
• Enlarged hook
• Function buttons (bartacking and needle positioning)
• Clearance under the arm: 265mm x 120mm
• Needle system: 134/35, 80-120 Nm

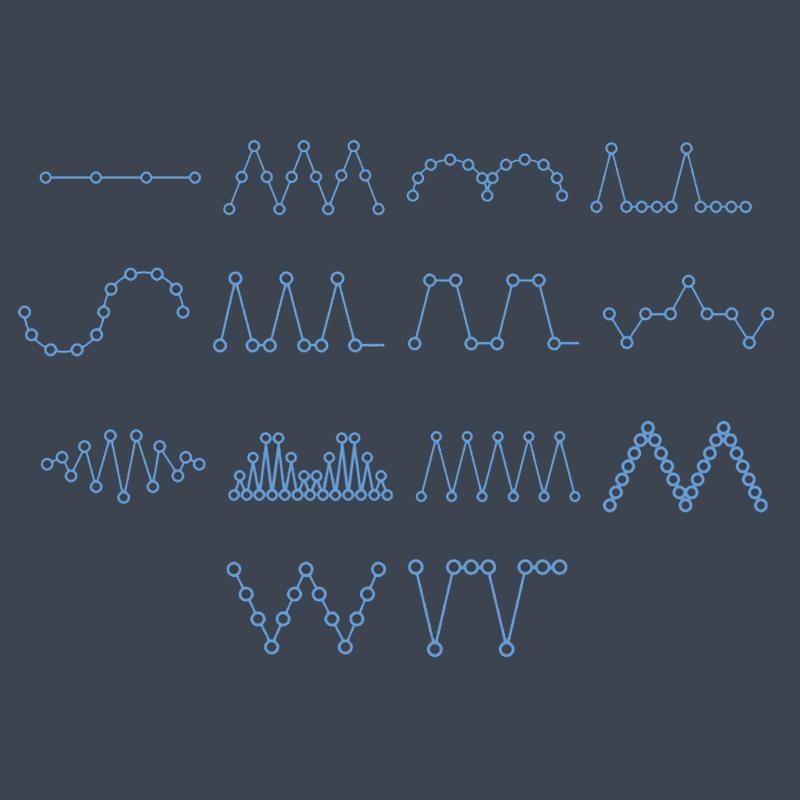

• Up to 14 di¬fferent zig zag stitch patterns through cam change

The machine is available in several versions differing in parameters and purpose.
