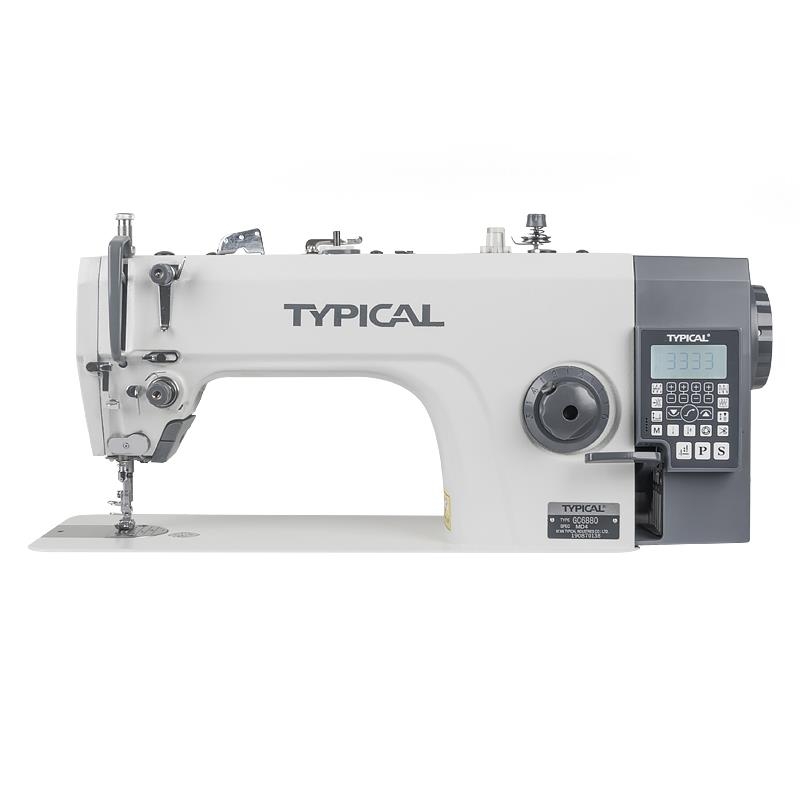

Typical GC6880A-HD4 - One needle lockstitch machine with drop feed and automatic functions

New one needle lockstitch with drop feed, for light and medium materials. Machine is equipped with automatic functions such as thread trimmer, foot lifter and back tacking. Build-in motor on machine head has intuitive control panel.

Important machine features:

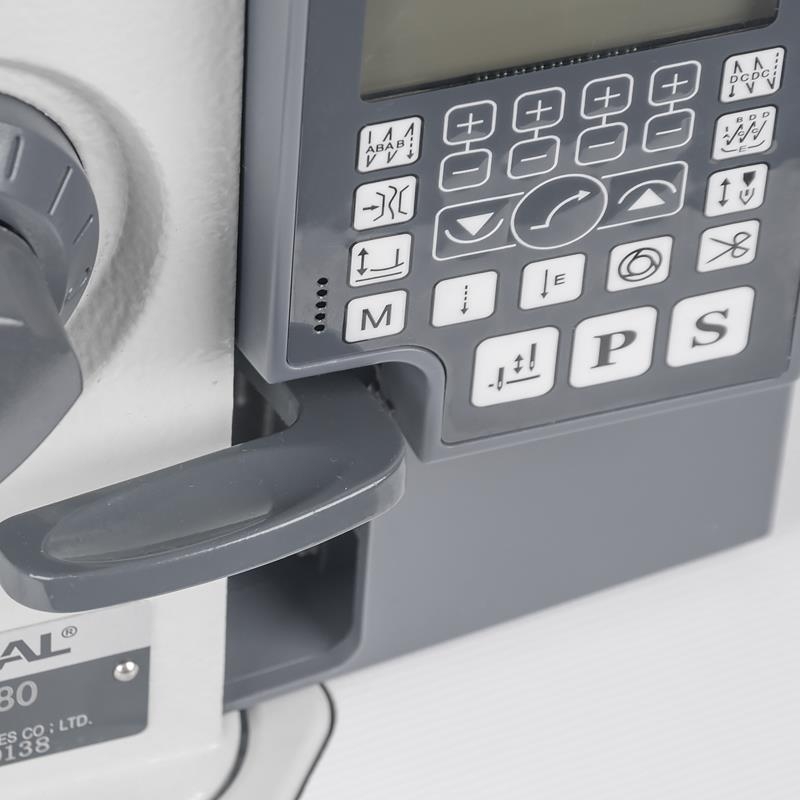

- Integrated control panel and energy saving motor
- Voice commands
- USB port
- Integrated LED light
- Automatic thread cutter
- Nipper
- Automatic backtacking
- Automatic foot lifter
- Closed oil system
- Power supply 230V/50Hz

Technical specifications:

• Stitch type: 301
• Maximum sewing speed: 4500 spm
• Maximum stitch lenght: 7mm
• Feeding type: Drop feed
• Clearance under the arm: 255*130
• Needle system: DPx5; 135x5; 134
• Maximum thread thickness: 40
• Hook type: Standard
• Lubrication: Automatic
• Needle stroke: 35mm
• Needle quantity: 1
• Motor type: Energy saving, direct-drive
• Presser foot lift: 15mm
