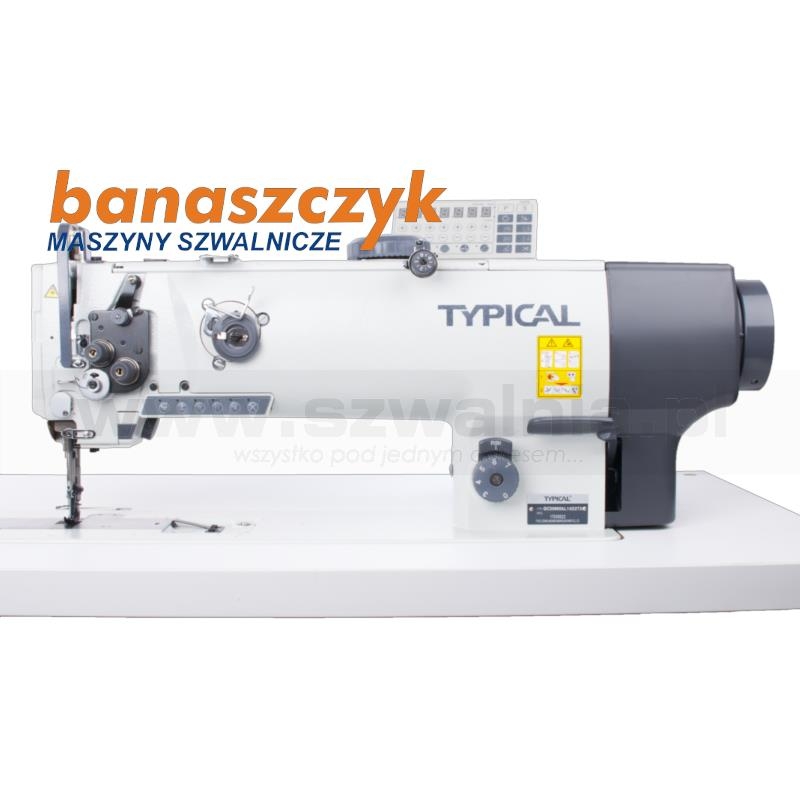

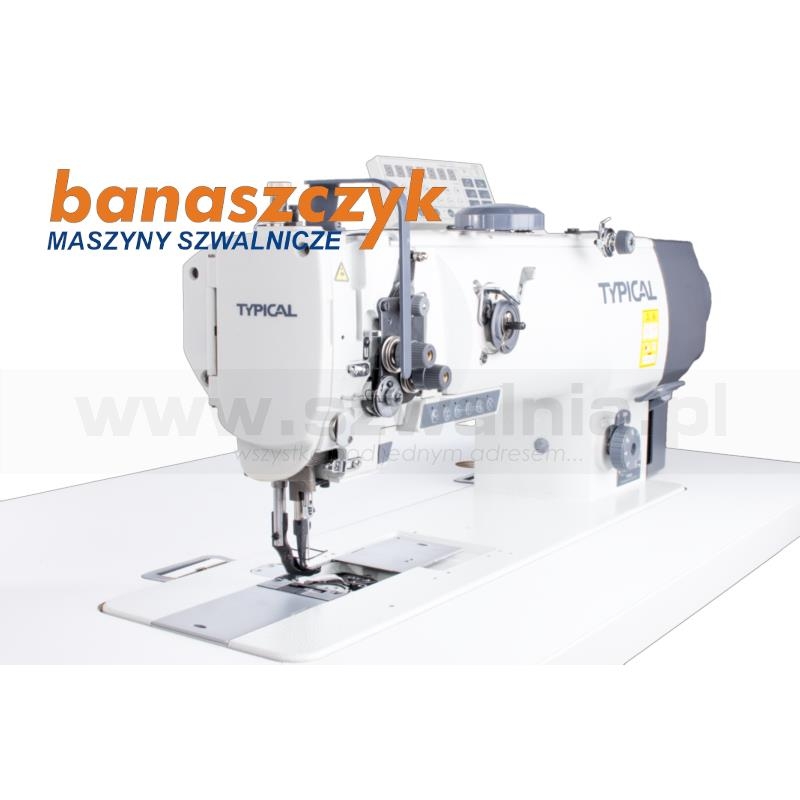

TYPICAL GC20665-KL14-D3T3 automatic lockstitch with compound feed

This machine is modern, automatic lockstitch, dedicated to medium and heavy sewing. Machine has compound feed, enlarged area under the arm (360mm) and bigger hook. There is also direct-drive and energy saving motor, integrated with machine head. Machine has led light and nipper (electromagnetic mechanism which keep thread after cutting). Lockstitch has additional function buttons. They are used to needle positioning, machine lock, back tack turning off and walking foot high regulation.

Feautures of TYPICAL GC20665-KL14-D3T3:

• compound feed
• energy saving motor and direct-drive
• max. stitch length: 7mm
• max. sewing speed: 2500
• foot lifting: 16mm
• automatic functions:
  • needle positioning
  • foot lifting
  • backtacking
  • thread trimmer
• electronic control panel
• bigger hook
• needle bar stroke: 38mm
• automatic lubrication system
• area under the arm: 360
• led light
• nipper
• regulation of walking foot
• additional function buttons
  • walking foot regulation
  • back tack turning off
  • needle positioning
  • machine lock
