JUKI MO 6714D/YGF owerlock

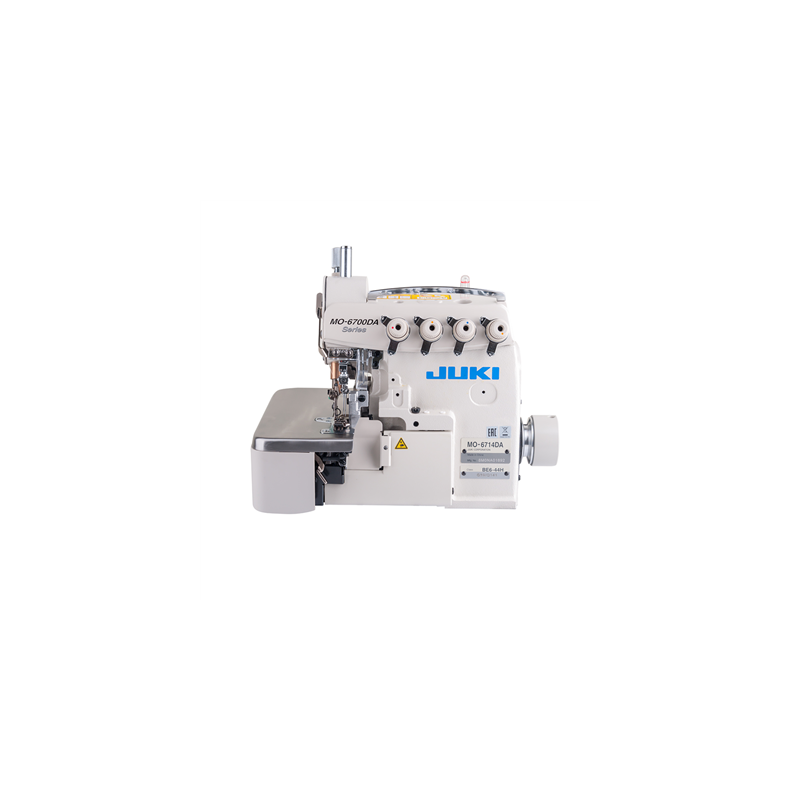

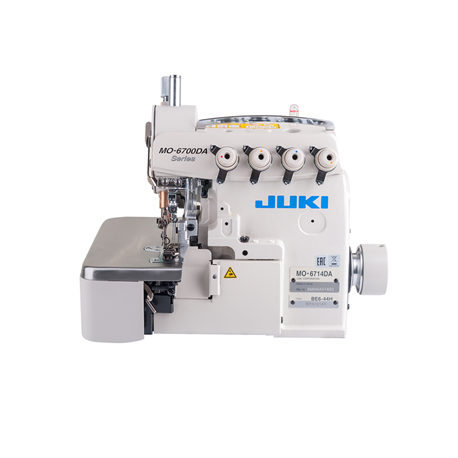

JUKI MO6714DA – two needle overlock with semi-dry-head and automatic lubrication system

Thismodel is a two-needle overlock, very popular in its class, designed for light and medium sewing. Machine manufacturers equipped it with semi-dry head, which in combination with the upper looper mechanism and needle bar (both parts donot require separate lubrication) affect the reduction of oil leaks. With thismachine you can sew with a four-thread stitch (two needles) or after turningoff one needle with a three-thread stitch. The JUKI MO6704DA overlock machinesews at 7000 stitches per minute.

Parametersof the JUKI MO6714DA overlock:
•Needle: 2
•Needle gauge: 2.0, 3.2mm
•Feed type: differential
•Differential feed regulation: 1: 0.7 ~ 1: 2
•Maximum sewing speed: 7000 stitches per minute
•Stitch length: 0.8-4mm
•Overredging width: 2.0, 3.2, 4.0, 4.8
•Maximum lift of the presser foot: 7mm
•Needle bar stroke: 24.5mm
•Lubrication system: automatic
•Needle cooler: option
•Needle thread heat remover: option
•Needle system: DCx27

Thismodel is also available in another version:
•oneneedle three thread overlock (rolled hemming) MO6704DA-0A4150/YGF
•oneneedle three thread overlock (without rolled hemming)MO6704DA-0E440H/YGF
•twoneedle five thread overlock MO6716DA-DE6307/YGF
