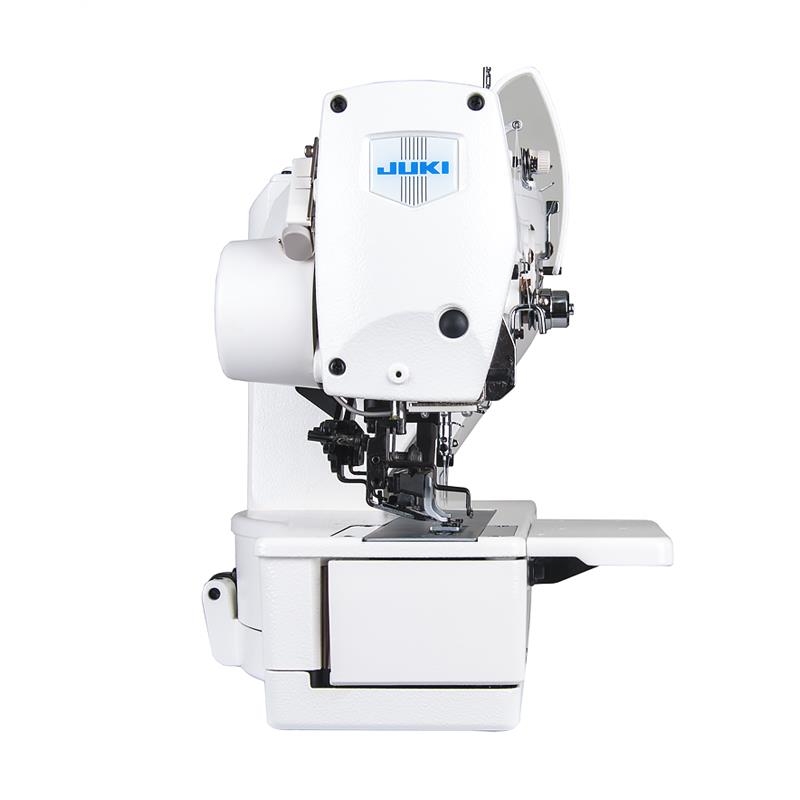

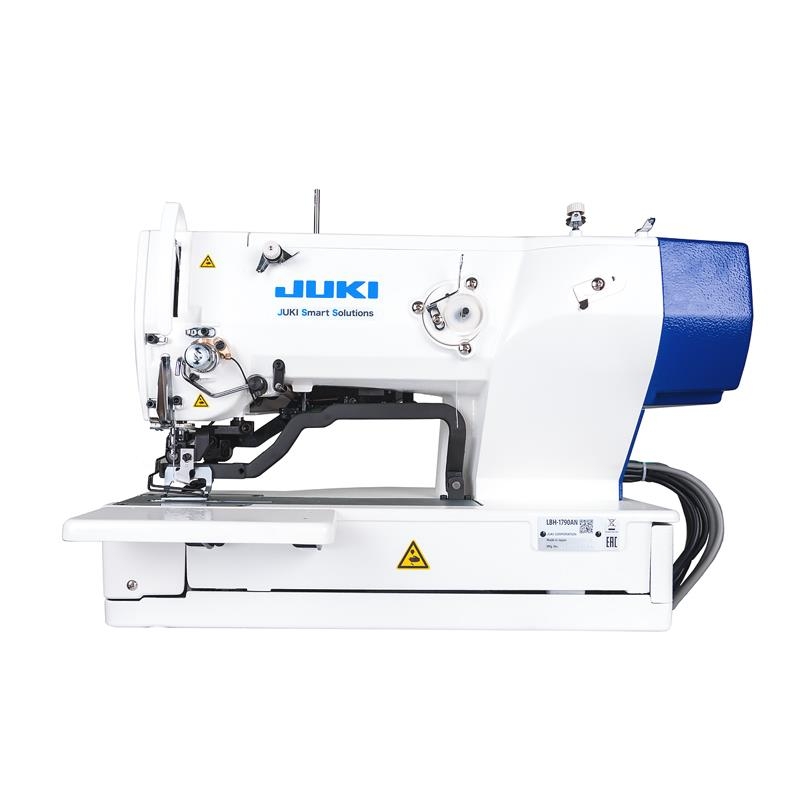

JUKI LBH-1790AN computer-controlled buttonhole machine



LBH1790ANS/KPL

JUKI

New product


Modern buttonhole machine Juki, with built-in NFC technology, enabling data management. Among the advantages of Juki LBH-1790AN, it is worth mentioning the possibility of...

More details

Ask for price

+48 42 212 14 50

Ask about product

Fast shipping

Cześci do maszyn

Add to whishlist

Add to wishlist

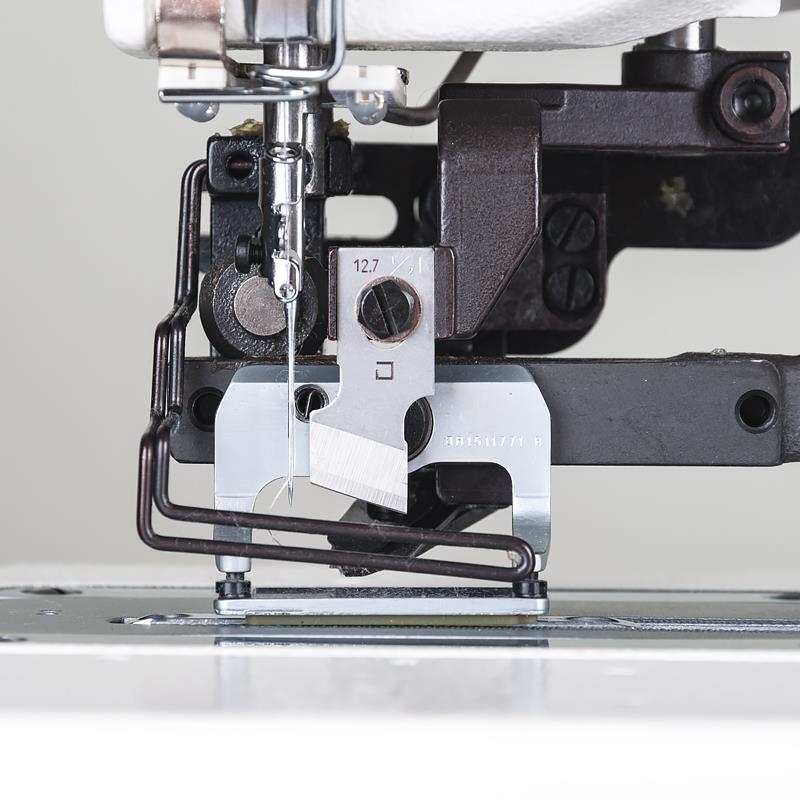

Modern buttonhole machine Juki, with built-in NFC technology, enabling data management. Among the advantages of Juki LBH-1790AN, it is worth mentioning the possibility of cycle sewing. Buttonhole memory can contain up to 20 different programs (cycles) and each program can use 30 buttonhole patterns. The machine can also be programmed to sew two or more different buttonhole patterns (without lifting the work clamp foot). Different mechanisms are electronically controlled: feed mechanism, thread trimming, foot lifting. Direct-drive reduces noise. There is also adjustable led light. Auxiliary table improves every day work. Machine settings can be controlled using Juki application or USB. Electronic thread tension control system enables to remember your settings and allows to use them again. You could set parameters depending on material type, type of thread and sewing speed. This solution guarantees best stitches quality and prevents thread breakage. Control panel also allows you to set thread tension for the basting stitch. This solution is ideal for knitwear. Thanks to the multicut function, there is no need to change the knife even if the length of the buttonhole changes.

Features of JUKI LBH-1790AN:

  • Direct-drive
  • Sewing speed: 4200 spm
  • Size of cloth cutting knife: 6.4-31.8mm
  • Bartacking width: max. 5.0mm (with special-specification part. Max: 10mm)
  • Buttonhole length: Max. 41mm (optional: 70mm, 120mm)
  • Lift of the work clamp: 17mm
  • Needle bar stroke: 34.6mm

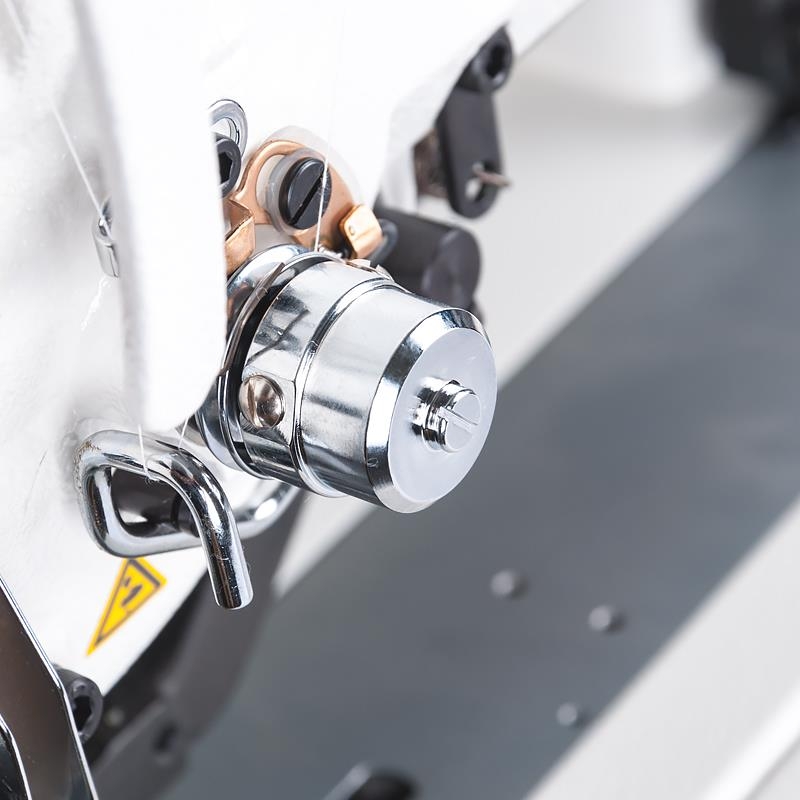

  • Electronic thread tension control system
  • Bobbin thread winder built-in machine head
  • Number of standard patterns: 31 patterns
  • Number of patterns that can be input: max. 99 patterns
  • Needle system: DPx5
  • Adjustable led light

  • Price per phone So
