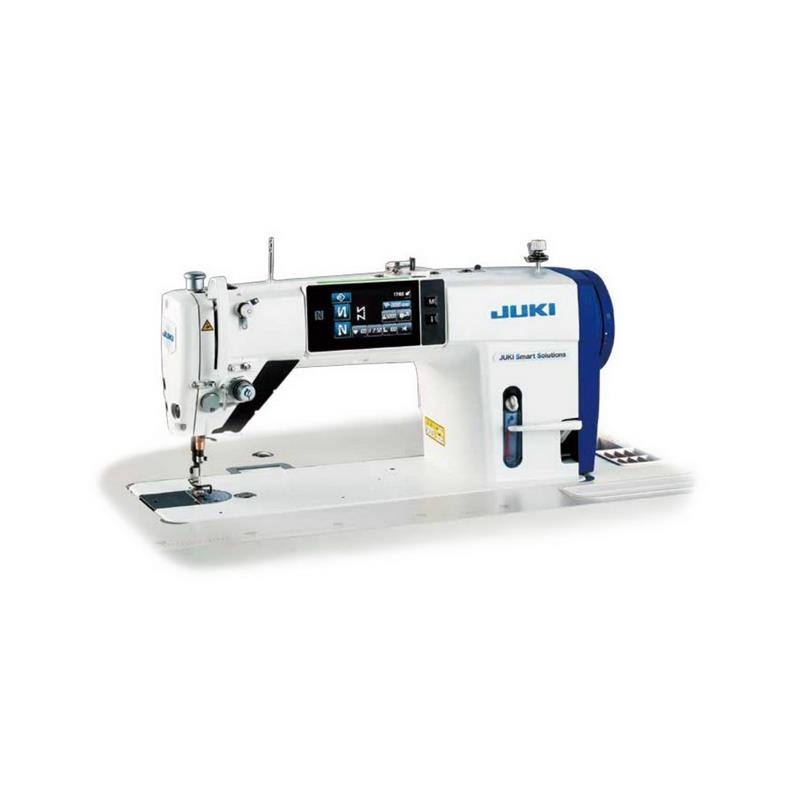

JUKI DDL 9000CSMS digital type direct-drive sewing machine

Direct-drive, high-speed, sewing system with automatic thread trimmer

Computer-controled vertically and horizontally driven feed mechanism

The world’s first feed mechanism which is driven both vertically and horizontally has been computerized.
The feed mechanism changes its feed locus in accordance with the material.
As a result, the optimum adjustments can be achieved only by setting data on the operation panel.
Furthermore, the vertically-driven feed mechanism helps keep the length of the thread remaining on the material after thread trimming constant.

Remaining thread at the end of sewing reduced to 3mm

A both-blade driven rotary knife system is adopted. the knife intersects with the thread to trim it just beneath the needle entry point.
Since the knife ensures constant length of needle thread, the length of thread remaining on the material after thread trimming is, unlike thread trimming with the thread tensed, also constant.
The Juki DDL-9000CSMS inherits JUKI’s thread trimming technology to allow the thread trimmer to start up as soon as the pedal is depressed.

Sewing Machine management utilizing “IoT” (Internet of Things)

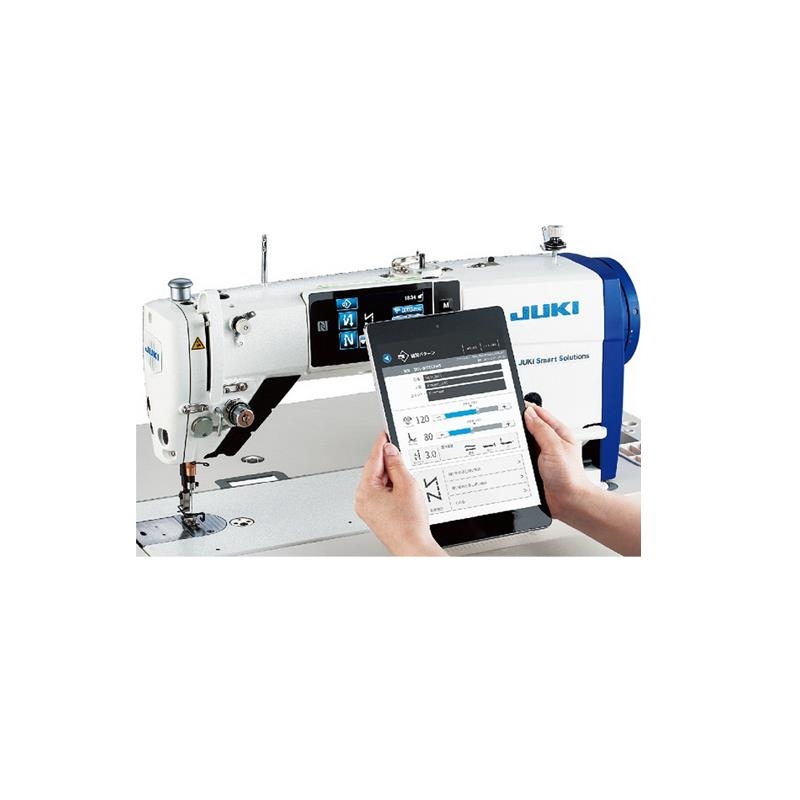

Data adjusted in a sample-making workshop etc. can be transferred without contact to the sewing machines in your factory using your tablet. (USB port is provided as standard)

Technical parameters:

Application: Medium-Weight
Lubrication: Semi-Dry
Lubricating Oil: JUKI Machine Oil 7 (equivalent to ISO VG7)
Max. Sewing Speed: 5,000 sti/min
Max. Stitch Length: 5mm
Needle Bar Stroke: 30.7mm
Feed Dog Height: 0.8mm
Needle: DB x 1 (#11), #9 ~ #18 (Nm 65 ~ 110)
Lift of the Presser foot: 5.5mm/15mm
Size of the Bed: 517 x 178mm (odległość od igły do ramienia maszyny: 303mm)
Bobbin Thread Winder: Built-in the machine head
Machine Head Drive: Compact AC Servomotor (450W) that is directly connected to the main shaft (direct-drive system)
Automatic reverse feed function: Provided as Standard
Power Consumption: 520VA
