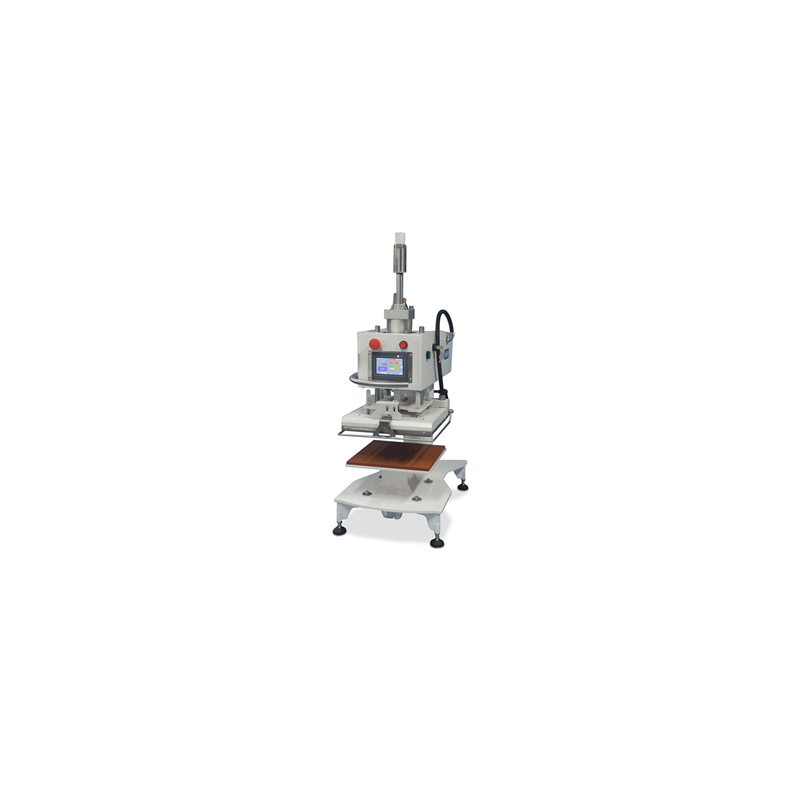

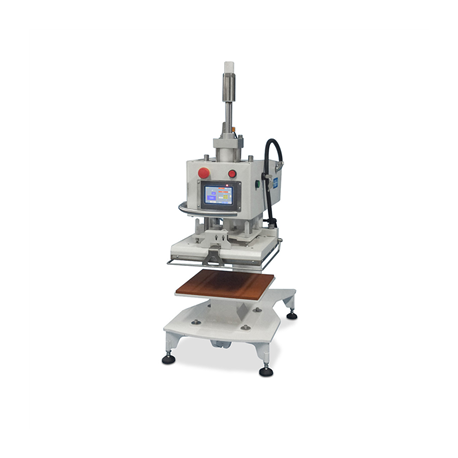

H&H CS-680 Pneumatic flat press machine

H&H CS-680 is a pneumatic press designed for pressing elements with dimensions up to 300x300 mm. Equipped with a control panel with a color touch screen and PLC processor. During operation, the device guarantees constant temperature and uniform pressure on the entire surface of the pressing plate. Features: Color touch screen control panel. PLC controlled. Maximum operator safety by two-handed actuation of the press. Device can be turned on with a foot pedal. Vertical press movement. Top plate tilts outwards. Key lock function. Swing arm. Specification: Power supply: 230V, 50/60Hz Heater power: 1500W Compressed air: > 0.4mpa Maximum temperature: 260C Timing range: 1-999/s Upper mold area: 305x305mm Lower mold area: 300x300mm Dimensions (LxWxH): 420x700x1020mm Netto weight: 102kg
