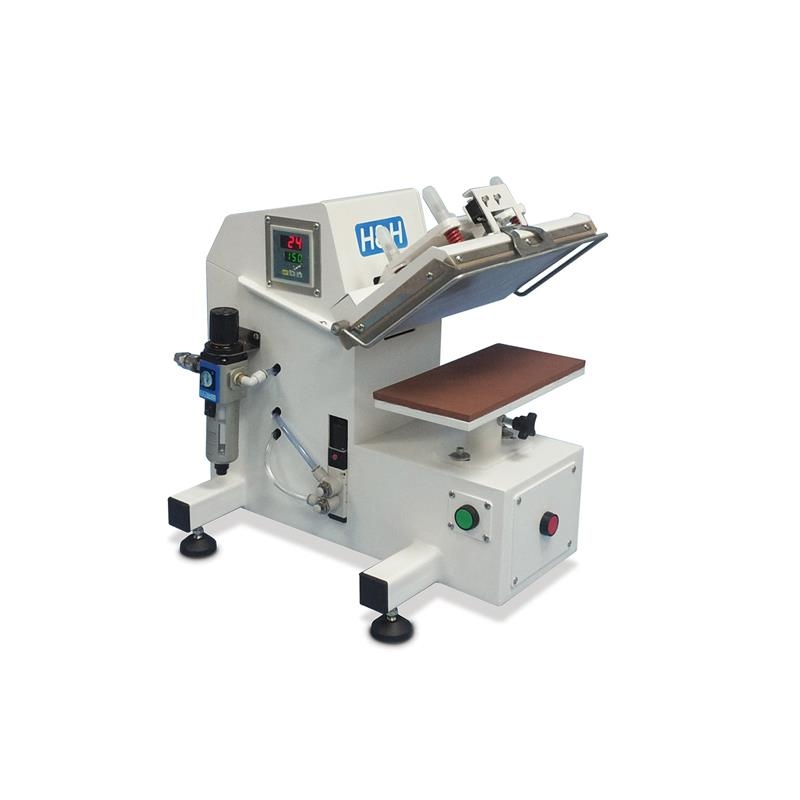

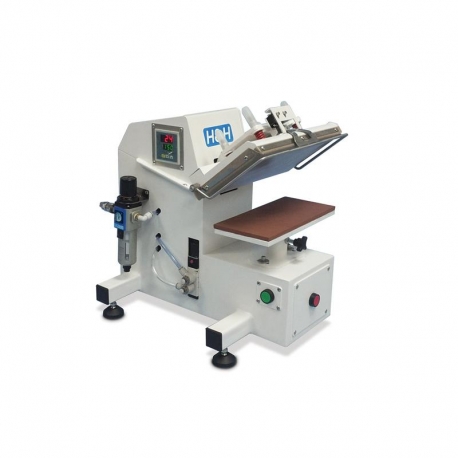

H&H CS-673 Pneumatic flat press machine



W/JEUXCS-673

New product


H&H CS-673 is an easy-to-use pneumatic press with compact dimensions for pressing elements up to 280x130mm. Equipped with a programmable control panel. During operation,...

More details

Ask for price

+48 42 212 14 50

Ask about product

Fast shipping

Cześci do maszyn

Add to whishlist

Add to wishlist

H&H CS-673 is an easy-to-use pneumatic press with compact dimensions for pressing elements up to 280x130mm. Equipped with a programmable control panel. During operation, the device guarantees temperature and uniform pressure across the entire press plate.

Features:

  • Device can be turned on with a foot pedal.
  • Suitable for all fabrics.
  • Folding top plate design.

Specification:

  • Power supply: 230V, 50/60Hz
  • Heater power: 1300W
  • Compressed air: > 0.4mpa
  • Maximum temperature: 260C
  • Timing range: 1-999/s
  • Upper mold area: 300x150mm
  • Lower mold area: 280x130mm
  • Dimensions (LxWxH): 380x520x465mm
  • Netto weight: 35kg
  • Extra lower mold: 150x50mm, 60 Φ
