GC20606-1L18-D2 one-needle lockstitch with unison feed

One-needle lockstitch with unison feed. Designed for heavy materials.

Typical GC20606-1L18-D2 adopt single needle and single vertical hooks with auto lubrication for thread looping, sliding lever for thread take up to form two lines of lockstitch seam. The upper shaft and lower shaft are supported by ball bearing and driven by teeth-type synchronic belt; plunge oil pump lubrication system.

They adopt the compound feed mechanism of feed dog, needle bar and presser foot, even if for long stitch length and long material. This series can deal with them freely. This series adopts numerical computerized control system, which is designed with auto-trimming, auto-setting stitich length, auto-backtacking, auto-presser foot lifter, etc. It is also designed with the electrical servo motor.

This series is widely used in the factories of suitcase, tent, cushion, leather, goods, apparel, mat, etc.

Characteristics:
- Efficient machinery lubrication system
- Large vertical hooks

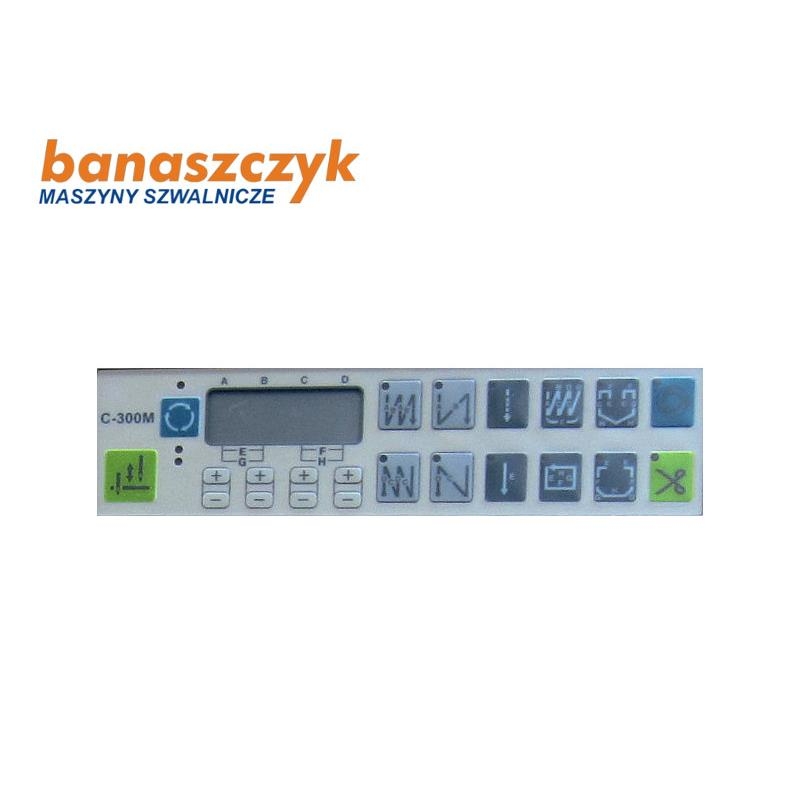

- control panel
- Energy-saving engine
- Automatic: thread trimmer, reverse feeding, foot lifter
- The safety clutch to prevent damage to the hook
- High lift foot and needle

Technical parameters:
- Maximum stitch length: 9mm
- Maximum speed: 1 200 stitches / minute
- Lifting the needle bar 36 mm
- Lifting feet: 8/13 mm
- A system of needles: CSx230 26
- Working surface: 457 x 110 mm

We assembled, ready to work kit comprising:
- Head machine
- The disc table
- Metal base
- Engine
- drawer
- Additional Accessories
- User's Guide
