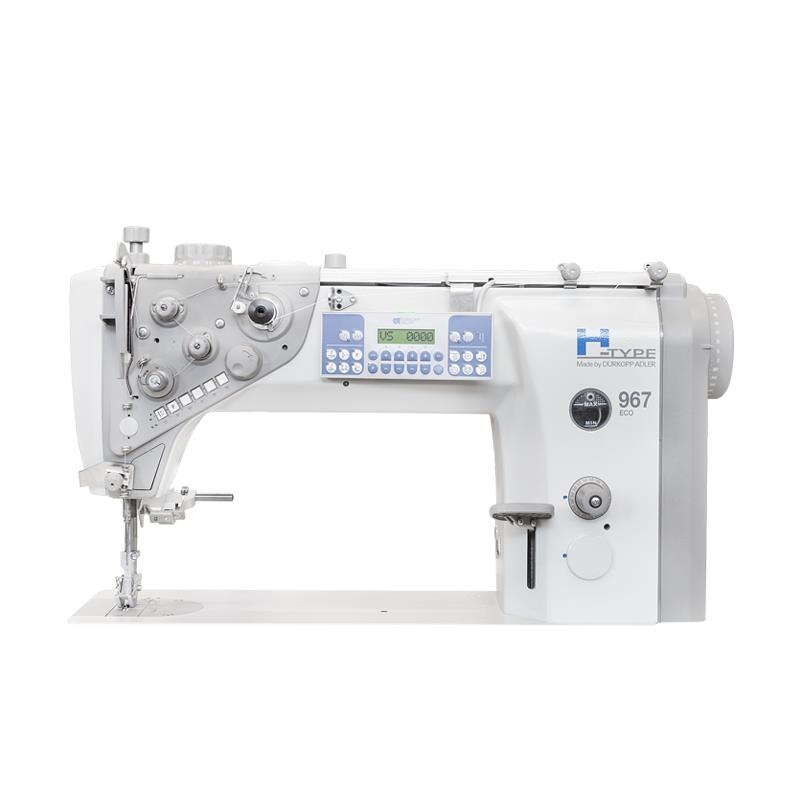

Durkopp Adler The H-Type single needle lockstitch flat bed machines

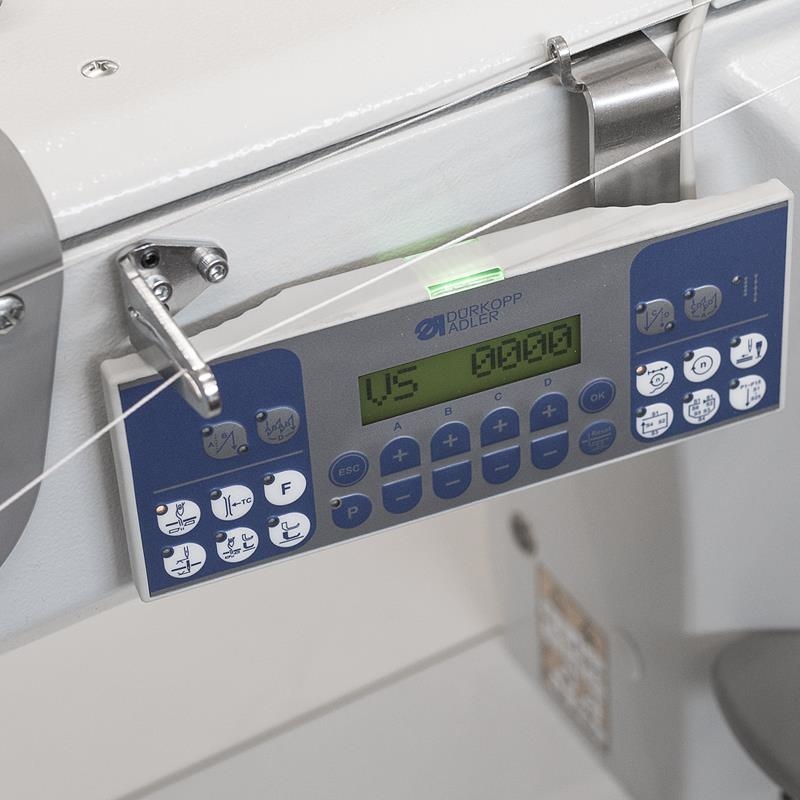

The H-Type Single needle lockstitch flat bed machines with unison-feed, designed for heavy-duty technical stitching such as conveyor belts, transmission belts, ropes, etc., equipped with a very large capacity shuttle hook and an energy-saving motor with a legible control panel. The standard machine has an automatic foot lift (up to 30mm) and needle positioning. A large working clearance (420x225mm) facilitates sewing large elements, and the sewing function through a dedicated "Jog-Dial" allows to precise finishing of the sewn pattern.

Technical parameters:
- Max. sewing speed: 1000sti/min.
- Max. stitch length: 15 mm
- Max. foot lifting: 30mm
- Hook: XL barrel shuttle hook
- Alternating top feed: up to 12mm
- Needle size: 120-300Nm
- Needle system: 794, 1000H
- Working area: 420x225mm
