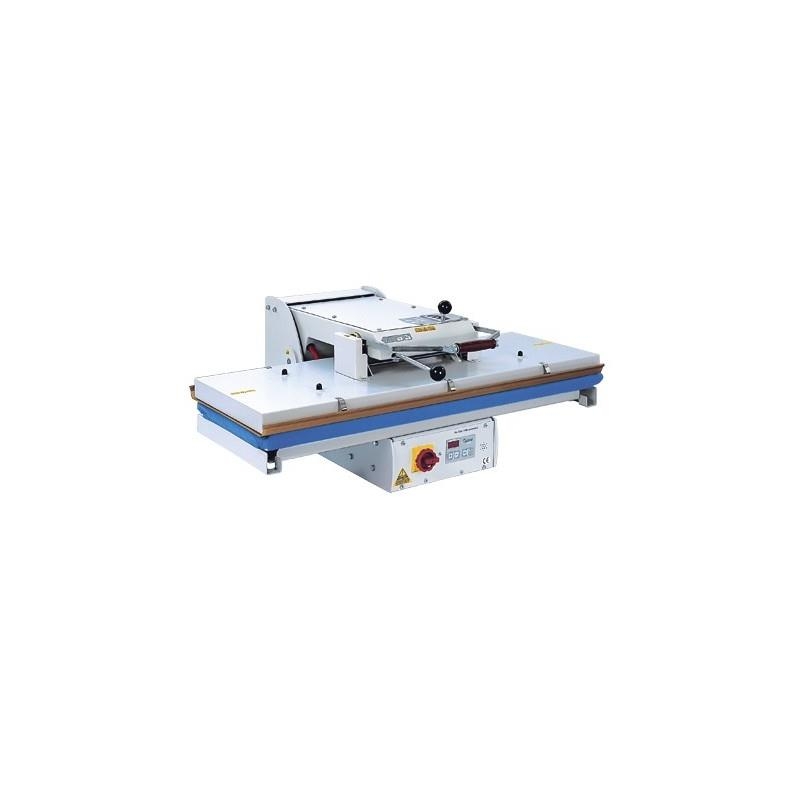

Pneumatic plate fusing machine with an electronic programmer used to adjust the clamping time and the temperature of the plate. Plate temeprature can be adjusted in the range from 0 to 230°C, and the clamping time from 0 to 90 seconds. Reducer and manometer are used to regulate clamping force. The safety of the machine operator is ensured by two safety buttons to prevent accidental closing of the plate.

Parameters of the COMEL PL/T 500 PNEUM:

• Voltage: 220-240V
• Compressed air pressure: 2.5 to 8 bar
• Plate dimensions: 90x40cm
• Heater plate power: 2250W
• Temperature regulation in the range: 0-230°C
• Fusing time regulation in the range: 0-90 seconds
• Weight: 105kg
• Dimensions: 73x100x120cm
