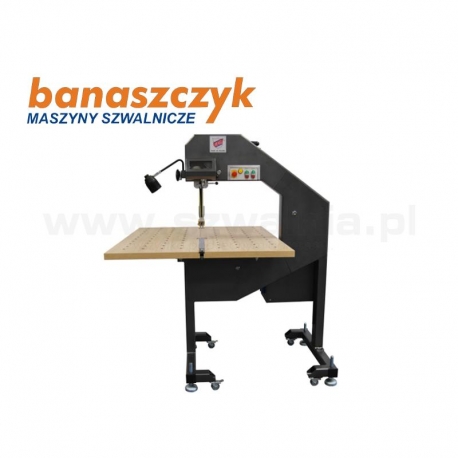

Band knife machine R500/air-blow

Band knife machine Rexel R500 it’s easy to use and highly productive equipment. It has high precision cutting of textile materials (cotton, knitted fabrics, synthetic fabrics, insulation, etc.). Multiple layers of fabric can be cut by Rexel R500 thickness up to 300 mm.
Band knife machine can be used as a standalone workstation or with a cutting table Rexel SK-3.
Band knife machine Rexel R500 is very easy to operate and is equipped with a grinding device, which provides high quality sharpening with minimal wear of band knife.
Several microswitches will prevent starting of cutting machine, if a cover is open or the band is not tightened. Broken band or its wrong tension automatically turns off machine. Machine is equipped with a lamp with separate switch.
Also machine is equipped with a mechanical band catcher that makes the band fixed in case of break. Thank to this solution working with band knife machine become to be more safer.

The equipment includes:

• Mechanical band catcher;
• Lamp;
• Sharpening device;

Specifications:

• Maximum cutting capacity:     300 mm
• Gap between knife and body:     500 mm
• Length of band knife:     2825 mm
• Table dimension:     1000 x 1200 mm
• Power supply:     400 V / 50 Hz
• Wattage:    1,1 kW
