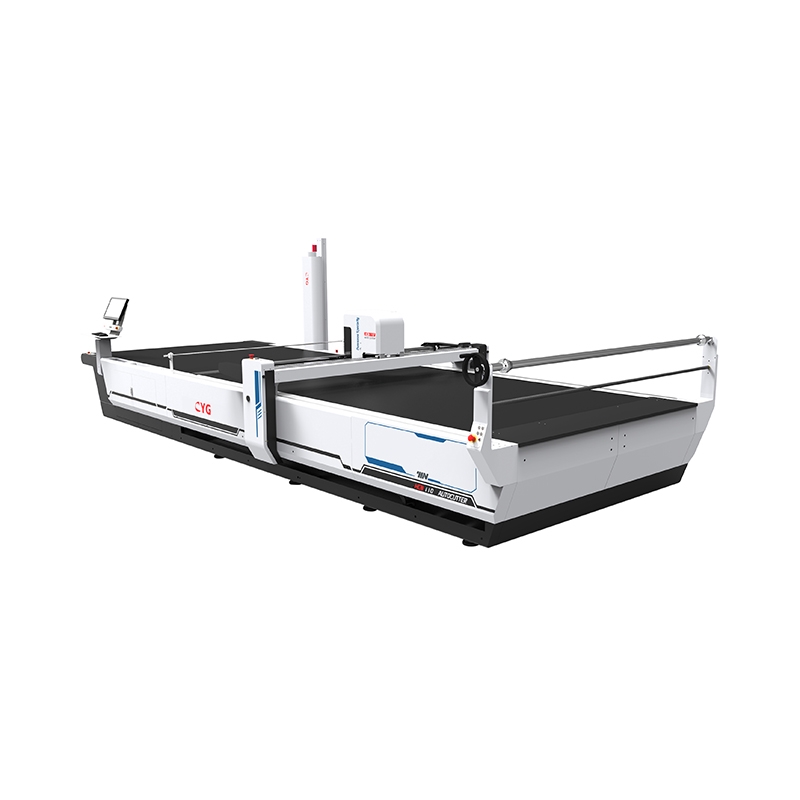

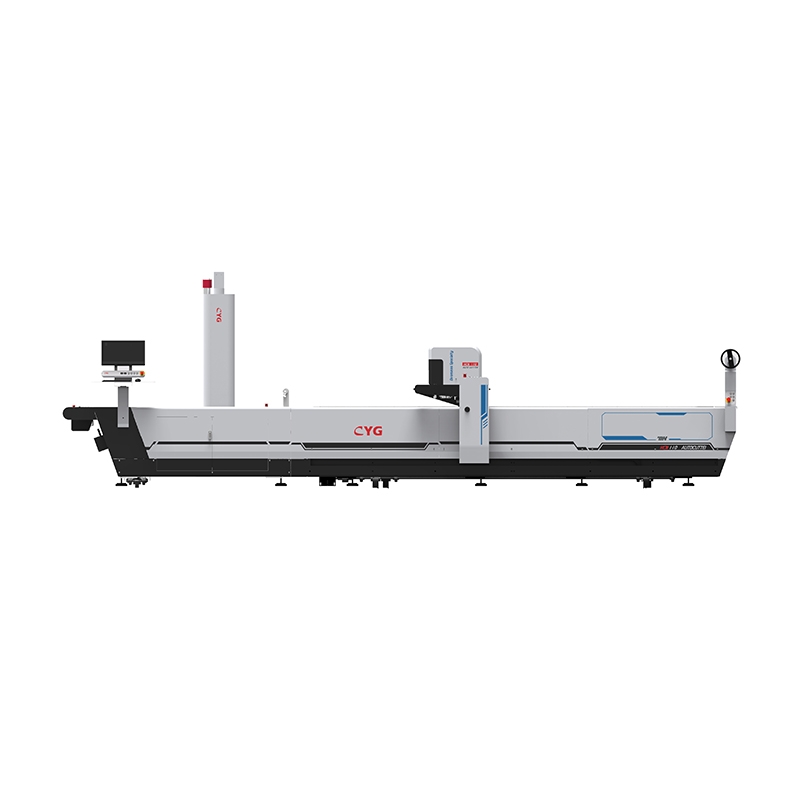

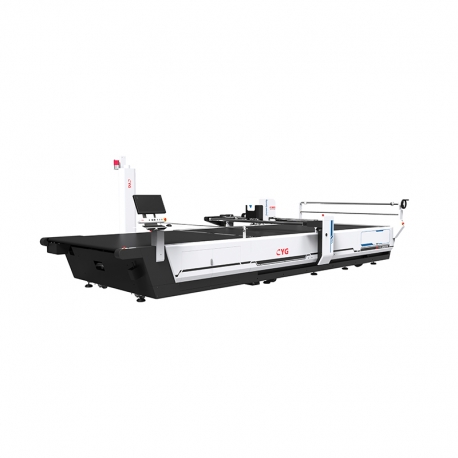

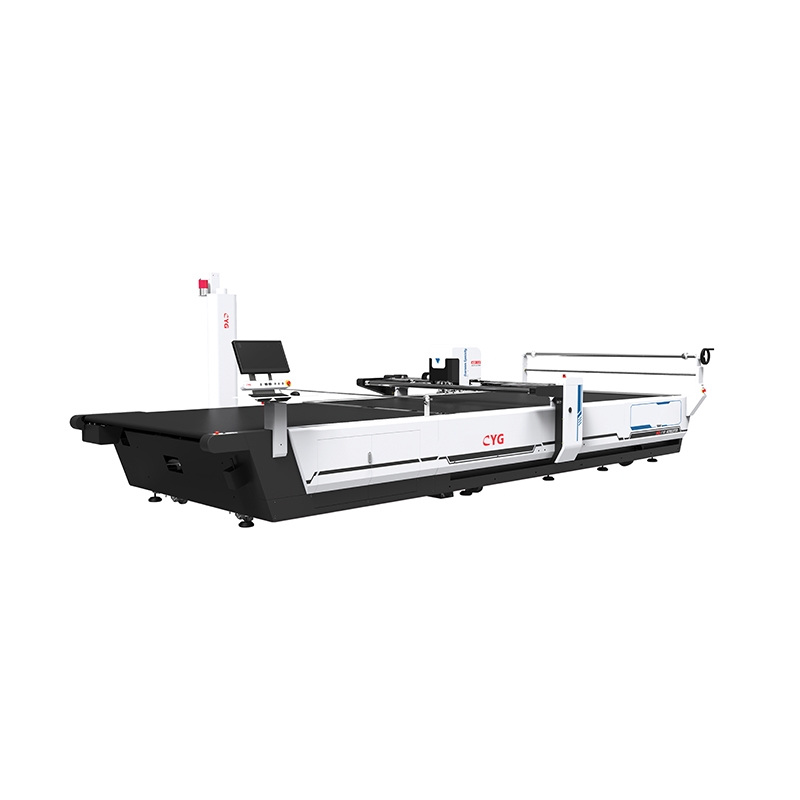

HY-HC1705
New product
This product is temporarily unavailable.
Warning: Last items in stock!
Availability date: 2010-01-01
Very user friendly for the operator, it does not require previous experience. Intelligent technology and user friendly interface make it easy to use and maintain. Highly accurate, capable of producing a high quality cut parts. All maintenance work can be done in a very short time.
Advantages:
high speed cutting high layers
quick cutting: 45m / min
cutting height up to: 70 mm (depends from model)
cutting system that contributes significantly to the profitability of your business
Technology:
patented Max-Durable technology
double wheel disrotatory sharpening
extended life of sharpening stones
reliability is built into every HY-H2007J model
electrical parts and cylinder are very reliable, powered by: OMRON, YASKAWA, SMC, ABB
Technical parameters:
cutting area: 1700 x 2000 mm
maximum cutting speed 60m / min
maximum cutting height (after suction of air): 50 mm
power supply: AC 380V / 50Hz (3 phase) / power cost: 13kw-15kw
air source 0.55 mpa 160l / min
connecting mode of cad and cam: network connection / usb drive
fabric cutting mode: tool vertical reciprocating type
sharpening system: double wheel disrotatory type
netto weight: 3000 kg
